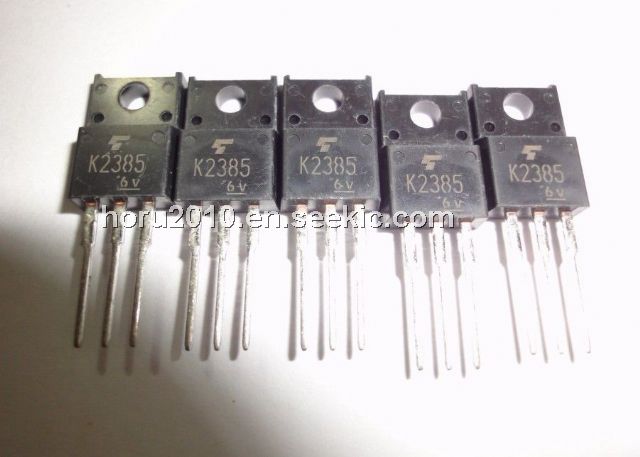

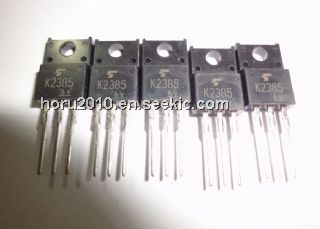

2SK2385

2SK2385, N CHANNEL MOS, TO, 62V, 36A, Toshiba Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.32~0.49 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	0.49 / Piece
10 ~ 100 :	0.32 / Piece

PartNumber:: 2SK2385

Brand:: Toshiba Semiconductor - Toshiba | Pack: TO | D/C: 10+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-19

From Other Seller

Part Number:2SK2385
US $0.32 - 0.49
Quantity:

piece

Product Summary

The 2SK2385 is an N CHANNEL MOS TYPE (high speed, high voltage switching, chopper regulator, dc-dc converter and motor drive applications).

Parametrics

2SK2385 absolute maximum ratings: (1)Drain-source voltage, VDSS: 62V; (2)Drain-gate voltage(RGS=20KΩ), VDGR: 60V; (3)Gate-source voltage, VGSS: ±20V; (4)Drain current, DC, ID: 36A; pulse, IDP: 144A; (5)Drain power dissipayion, PD: 40W; (6)Single pulse avalanche energy, EAS: 365mJ; (7)Avalanche current, IAR: 36A; (8)Repetitive avalanche energy, EAR: 4mJ; (9)Channel temperature, Tch: 150℃; (10)Storage temperature range, Tstg: -55 to +150℃.

Features

2SK2385 features: (1)4V gate drive; (2)Low drain-source ON resistance: RDS(on)=22mΩ(typ); (3)High forward transfer admittance: Yfs=27S(typ); (4)Low leakage current: IDSS=100μA(Max)(VDS=60V); (5)Enchancement-mode: Vth=0.8~2.0V(VDS=10V, ID=1mA).
