Product Summary

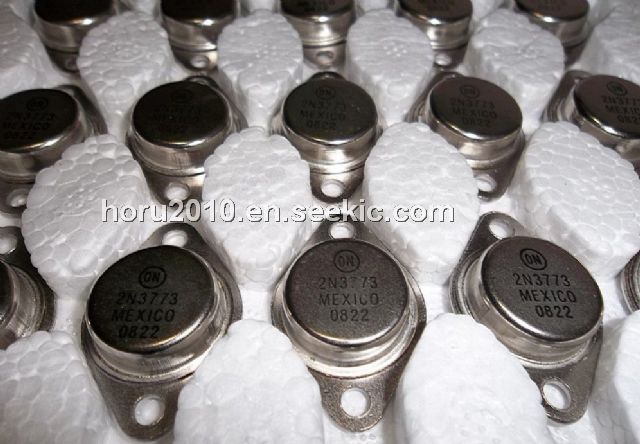

The 2N3773 is a PowerBase power transistor designed for high power audio, disk head positioners and other linear applications. The device can also be used in power switching circuits such as relay or solenoid drivers, DC to DC converters or inverters.

Parametrics

2N3773 absolute maximum ratings: (1)Collector emitter voltage, VCEO: 140Vdc; (2)Collector-emitter voltage, VCEX: 160Vdc; (3)Collector-base voltage, VCBO: 160Vdc; (4)Emitter-base voltage, VEBO: 7Vdc; (5)Collector current, continuous, IC: 16Adc; Peak, IC: 30Adc; (6)Base current, Continous, IB: 4Adc; Peak, IB: 15Adc; (7)Total power dissipation @TC =25℃, PD: 150W; Derate above 25℃, PD: 0.855W/℃; (8)Operating and storage junction temperature range, TJ, Tstg: -65 to +200℃.

Features

2N3773 features: (1)High Safe Operating Area (100% Tested) 150 W @ 100 V; (2)Completely Characterized for Linear Operation; (3)High DC Current Gain and Low Saturation Voltage, hFE = 15 (Min) @ 8 A, 4 V; VCE(sat) = 1.4 V (Max) @ IC = 8 A, IB = 0.8 A; (4)For Low Distortion Complementary Designs.

Diagrams

2N3773 block diagram
