Product Summary

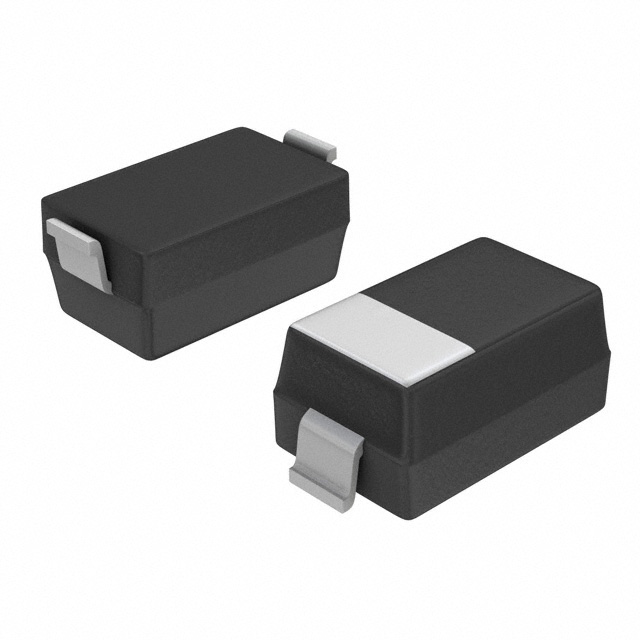

The MMSZ4705T1G Zener diode is offered in the convenient, surface mount plastic SOD-123 package. The device provides a convenient alternative to the leadless 34-package style.
Parametrics
MMSZ4705T1G absolute maximum ratings: (1)Total Power Dissipation on FR-5 Board, @ TL = 75°C: 500mW, Derated above 75°C: 6.7mW/°C; (2)Thermal Resistance, Junction-to-Ambient: 340 °C/W; (3)Thermal Resistance, Junction to Lead: 150 °C/W; (4)Junction and Storage Temperature Range TJ, Tstg: -55 to +150°C.
Features
MMSZ4705T1G features: (1)500 mW Rating on FR-4 or FR-5 Board; (2)Wide Zener Reverse Voltage Range: 1.8 V to 43 V; (3)Package Designed for Optimal Automated Board Assembly; (4)Small Package Size for High Density Applications; (5)ESD Rating of Class 3 (>16 kV)per Human Body Model; (6)Pb-Free Packages are Available.

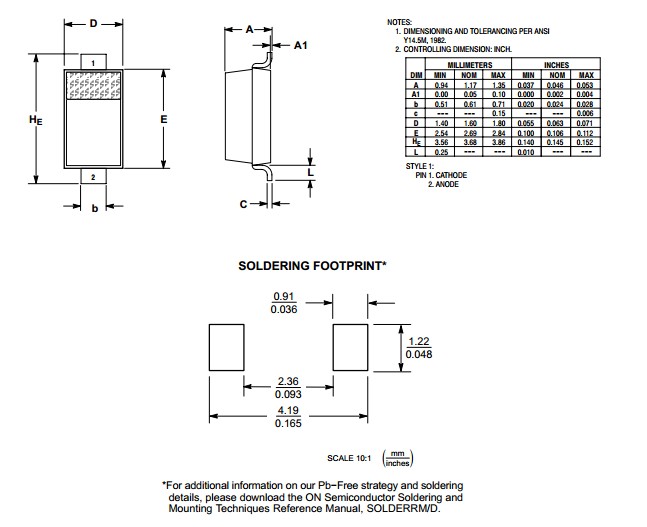

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MMSZ4705T1G |
ON Semiconductor |
Zener Diodes 18V 500mW |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
MMSZ10 |
Taiwan Semiconductor |
Zener Diodes 10 Volt 500mW 5% |
Data Sheet |
Negotiable |
|
||||||||||||
|
MMSZ10B |
Taiwan Semiconductor |
Zener Diodes 10 Volt 500mW 2% |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MMSZ10ET1 |
|
DIODE ZENER 10V 500MW SOD-123 |
Data Sheet |
|
|
||||||||||||
|
MMSZ10T3G |
ON Semiconductor |
Zener Diodes 10V 500mW |
Data Sheet |
Negotiable |
|
||||||||||||
|
MMSZ11ET1 |
ON Semiconductor |
Zener Diodes 11V 500mW |
Data Sheet |
Negotiable |
|
||||||||||||
|
MMSZ11T1G |
ON Semiconductor |
Zener Diodes 11V 500mW |
Data Sheet |
|
|
||||||||||||
