Product Summary

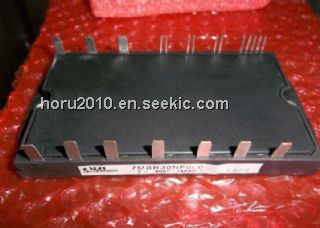

The 7MBR30NF060 is an IGBT module.
Parametrics
7MBR30NF060 absolute maximum ratings: (1)inverter, collector-emitter voltage, VCES: 600V; gate-emitter voltage, VGES: ±20V; collector current, IC: 30A; ICP: 60A; -IC: 30A; collector power dissipation, PC: 120W; (2)brake, collector-emitter voltage, VCES: 600V; gate-emitter voltage, VGES: ±20V; collector current,IC: 30A; ICP: 60A; collector power dissipation, PC: 120W; repetitive peak reverse voltage, VRRM: 600V; average forward current, IF(AV): 1A; surge current, IFSM: 50A; (3)converter, repetitive peak reverse votlage, VRRM: 800V; non-repetitive peak reverse votlage, VRRM: 900V; average output current, IO: 50A; surge current, IFSM: 350A; I2t: 648A2s; (4)operating junction temperature, Tj: 150℃; (5)storage temperature, Tstg: -40 to 125℃; (6)isolation voltage, Viso: AC 2500V; (7)mounting screw torque: 1.7Nm.
Features
7MBR30NF060 features: (1)zero gate voltage collector current, ICES: 1.0mA; (2)gate-emitter leakage curent,IGES: 20μA; (3)Ccollector-emitter voltage, -VCE: 3.0V; (4)forward voltage, VFM: 1.35V; (5)reverse current, IRRM: 1mA.

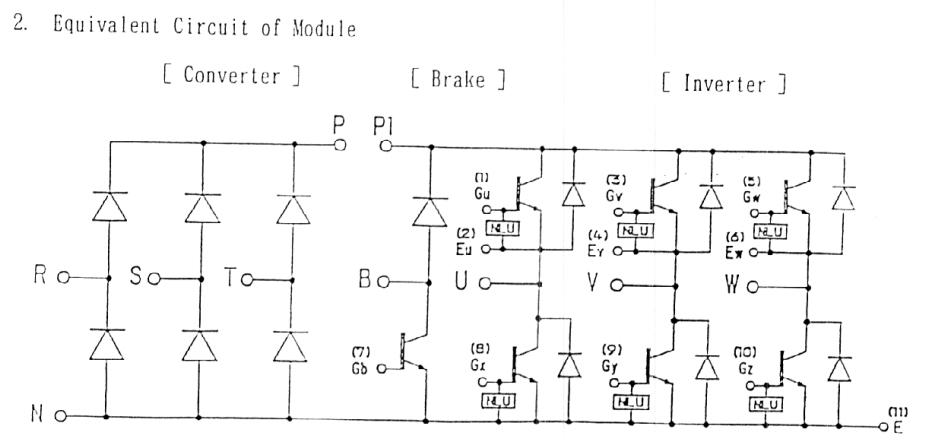

Diagrams
