Product Summary

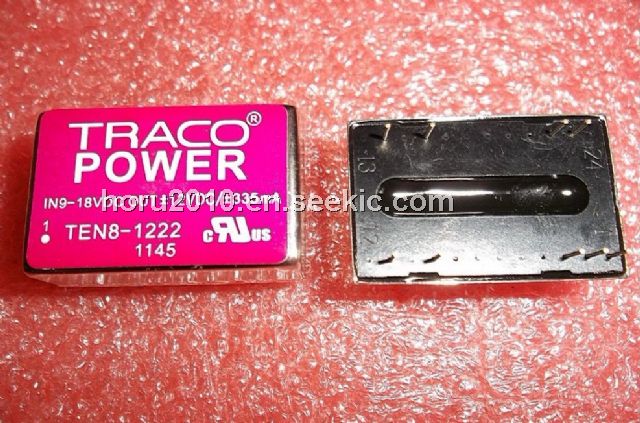

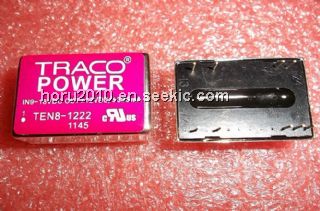

The TEN8-1222 is a high performance 8 W DC/DC converter module featuring wide 2:1 input voltage ranges in a DIL-24 package with industry standard footprint. A very high efficiency of the TEN8-1222 allows an operating temperature range of –40°C to +85°C. A built-in EMI input filter complies with EN 55022, class A without external components. Further standard features of the TEN8-1222 include remote On/Off and short-circuit protection.

Parametrics

TEN8-1222 absolute maximum ratings: (1)Input voltage range: 9 – 18 VDC; (2)Output voltage: ±12 VDC; (3)Output current max: ± 335 mA; (4)Efficiency typ: 87 %.

Features

TEN8-1222 features: (1)DIP–24 package with industry standard footprint; (2)Wide 2:1 input voltage range; (3)Input filter meets EN 55022, class A; (4)Extended operating temperature range: -40°C to +85°C; (5)Remote On/Off; (6)Shielded metal case with insulated baseplate; (7)Lead free design, RoHS compliant; (8)3 Year product warranty.

Diagrams

TEN8-1222 dimmension
