Product Summary

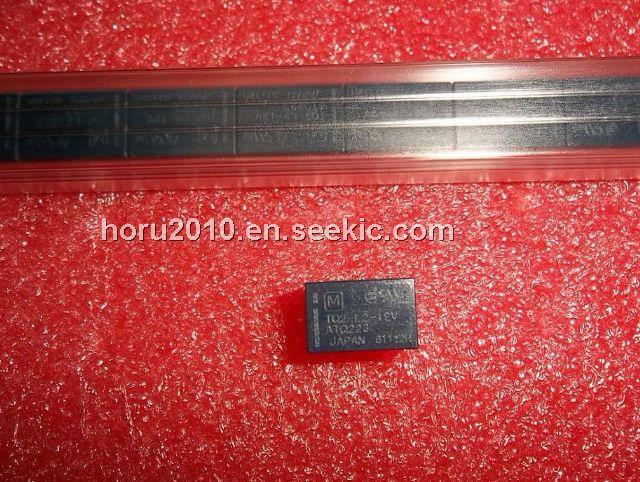

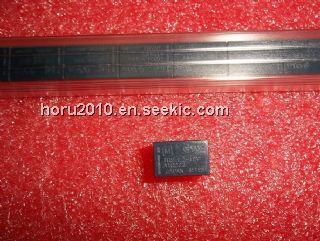

The TQ2-L2-12V is a 15 dB low profile relay.

Parametrics

TQ2-L2-12V absolute maximum ratings: (1)Contact Form: 2 Form C (DPDT-BM); (2)Coil Voltage: 5 VDC; (3)Coil Current: 28.1mA; (4)Coil Type: Single Side Stable; (5)Power Consumption: 140mW; (6)Contact Carry Current: 1 A; (7)Termination Style: Solder Terminal; (8)Isolation: 15 dB at 1 GHz; (9)Insertion Loss: 0.6 dB at 1 GHz; (10)Maximum Switching Current: 1 A; (11)Contact Rating: 1 A at 30 VDC / 500mA at 125 VAC; (12)Packaging: Ammo Pack.

Features

TQ2-L2-12V features: (1) High sensitivity: 2 Form C: 140mW power consumption (single side stable type). 4 Form C: 280mW power consumption (single side stable type); (2) Surge voltage withstand: 1500 V FCC Part 68; (3) Sealed construction allows automatic washing; (4) Self-clinching terminal also available; (5) M.B.B. contact types available.

Diagrams

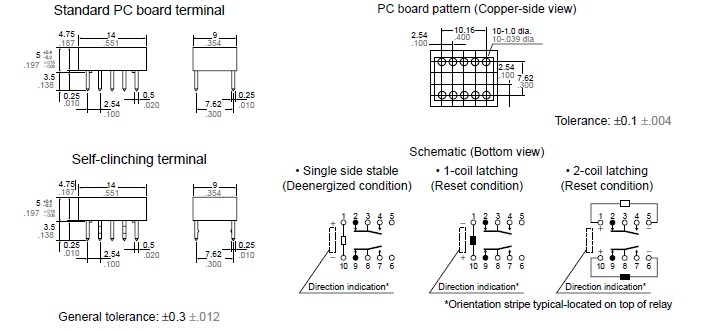

TQ2-L2-12V dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TQ2-L2-12V
TQ2-L2-12V

Panasonic Electric Works

Low Signal Relays - PCB 1A 12VDC DPDT 2 COIL LATCHING PCB

Data Sheet

0-1: $2.17
1-25: $2.11
25-50: $1.96
50-100: $1.64
TQ2-L2-12V-3
TQ2-L2-12V-3

Panasonic Electric Works

Low Signal Relays - PCB 2 Form A 12V 30VDC PCB Terminal

Data Sheet

0-1: $2.36
1-25: $2.16
25-50: $1.93
50-100: $1.64
