Product Summary

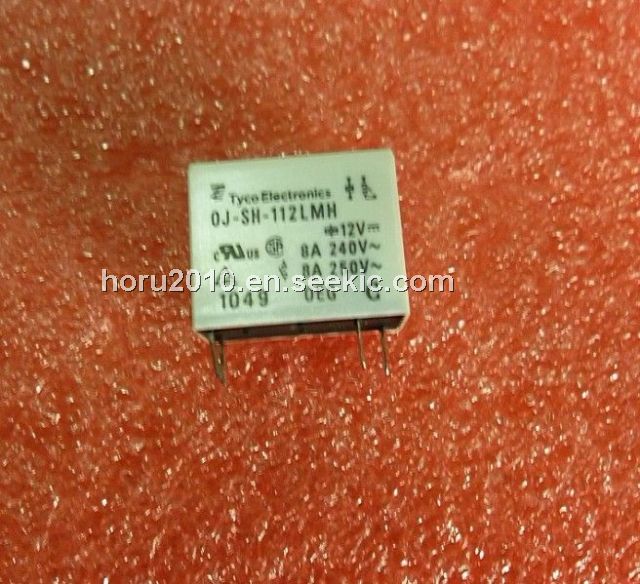

The OJ-SH-112LMH is a Miniature PCB Relay. The applications of the OJ-SH-112LMH include appliances, HVAC, industrial control.

Parametrics

OJ-SH-112LMH absolute maximum ratings: (1) Contact arrangement: 1 form A, 1 NO; (2) Rated voltage: 30VDC, 250VAC; (3) Max. Switching voltage: 30VDC, 277VAC; (4) Rated current: 3A to 10A; (5) Contact material: Ag, AgSnO, AgCdO; (6) Min. recommended contact load: 100mA, 5VDC; (7) Frequency of operation: 360 ops./h; (8)Operate time max. OJ/OJE-L: 15ms; (9) Release time max.: 4ms; (10) Voltage: 5V to 48V; (11) Nominal Power: 200mW; (12) Voltage: 5V to 48V; (13) Max. Coil Power: 130% of nominal.

Features

OJ-SH-112LMH features: (1)Miniature size 18.2×10.2×14.7h; (2)1 Form A (SPST-NO) contact arrangement; (3)Designed to meet UL, CSA, VDE, TUV requirements; (4)Designed to meet 4kV dielectric between coil and contacts (OJ); (5)Sensitive and standard coils available; (6)Immersion cleanable, sealed version available.

Diagrams

OJ-SH-112LMH block diagram
