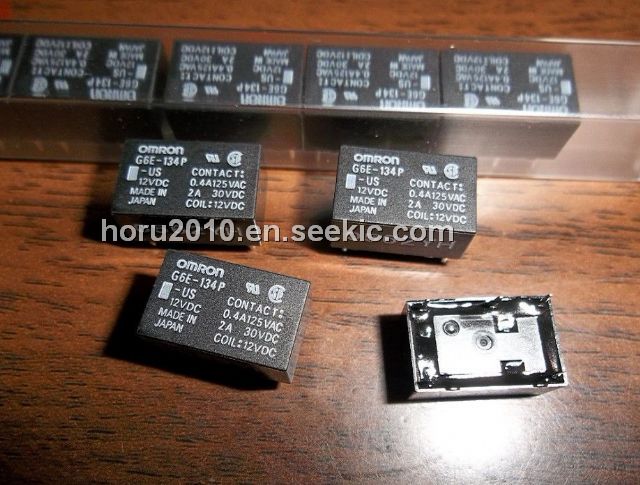

G6E-134P-US

G6E-134P-US, DIP, 1,500 V, Low Signal Relay, 5 ms, 1,000 MΩ

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.29~1.94 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.94 / Piece
10 ~ 100 :	1.29 / Piece

PartNumber:: G6E-134P-US

Brand:: Omron Electronics LLC - OMRON | D/C: 05+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-10

From Other Seller

Part Number:G6E-134P-US
US $1.29 - 1.94
Quantity:

piece

Product Summary

The G6E-134P-US is a Low Signal Relay.

Parametrics

G6E-134P-US absolute maximum ratings: (1)Contact resistance: 50 mΩ max; (2)Operate time (set) time: 5 ms max; (3)Release time (reset) time: 5 ms max; (4)Min. set/reset signal width Latching type: 15 ms min. (at 23℃); (5)Insulation resistance: 1,000 MΩ min. (at 500 VDC); (6)Dielectric strength: 1,500 VAC, 50/60 Hz for 1 minute between coil contacts, 1,000 VAC, 50/60 Hz for 1 minute between contacts of same pole; (7)Surge withstand voltage: 1,500 V (10 x160 μs) (conforms to FCC Part 68), 2,500 V (2 x 10 μs) (Telcordia Requirement); (8)Ambient temperature: -40℃ to 70℃ with no icing; (9)Humidity: 5% to 85% RH; (10)Weight: Approx. 2.7 g.

Features

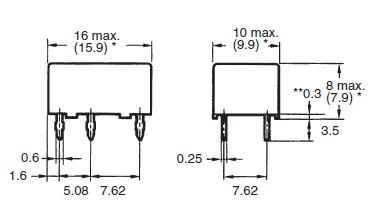

G6E-134P-US features: (1)Subminiature 7.87 H x 9.91 W x 16 L mm; (2)High sensitivity with pick-up coil power of 98 mW; (3)Surge withstand voltage meets FCC Part 68 requirements; (4)Unique moving loop armature reduces relay size, magnetic interference, and contact bounce time; (5)Bifurcated crossbar contact assures high reliability; (6)Single and Dual coil latching versions available; (7)Fully sealed construction; (8)RoHS Compliant.
