Product Summary

The 0-1393243-4 is a Power PCB Relay. The applications of it are Domestic appliances, heating control, emergency lighting, modems.

Parametrics

0-1393243-4 general specification: (1)Contact configuration: 2 CO or 2 NO; (2)Contact set: single contact; (3)Type of interruption: micro disconnection; (4)Rated current: 8 A, UL: 10 A; (5)Rated voltage / max.switching voltage: AC 240/400 VAC; (6)Limiting continuous current UL: 10 A; (7)Maximum breaking capacity AC: 2000 VA; (8)Limiting making capacity, max 4 s, duty factor 10%: 15 A.

Features

0-1393243-4 features: (1)2 pole 8 A, 2 CO or 2 NO contacts; (2)DC- or AC-coil; (3)Sensitive coil 400 mW; (4)Reinforced insulation; (5)WG version: Product in accordance to IEC60335-1; (6)RoHS compliant (Directive 2002/95/EC)as per product date code 0413.

Diagrams

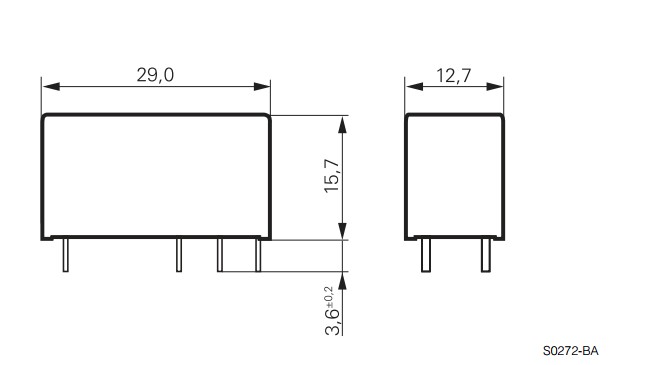

0-1393243-4 package dimensions
