Product Summary

The ALD112W is a 1 Form A Slim Power Relay.

Parametrics

ALD112W absolute maximum ratings: (1)Max. operating speed: 20 cpm (at rated load); (2)Initial insulation resistance*1: Min. 1,000 MΩ (at 500 V DC); (3)Initial*2 breakdown voltage: 750 Vrms for 1 min Between open contacts, 4,000 Vrms for 1 min at Between contact and; (4)coil; (5)Initial surge voltage between contact and coil*3: Min. 10,000 V; (6)Operate time*4 (at nominal voltage): Max. 10ms (at 20 ℃); (7)Release time (with diode)*4 (at nominal voltage): Max. 10ms (at 20 ℃); (8)Temperature rise (at 70 ℃): Max. 45 ℃ with nominal coil voltage and at 3 A contact carrying current (resistance method).

Features

ALD112W features: (1)Slim type: Width 7 mm; (2)Perfect for small load switching of home appliances; (3)Low operating power; (4)High shock resistance; (5)High insulation resistance; (6)UL/CSA, VDE, TUV approved.

Diagrams

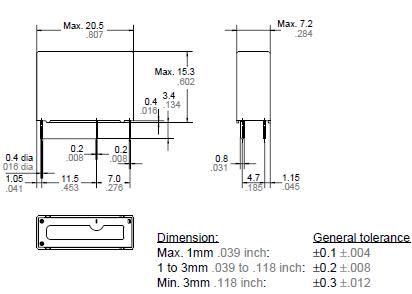

ALD112W package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ALD112W
ALD112W

Panasonic Electric Works

General Purpose / Industrial Relays 1 Form A 3A 277VAC 3A 30VDC 12V

Data Sheet

0-1: $1.20
1-25: $1.10
25-50: $0.98
50-100: $0.83
