Product Summary
The 1-1393243-8 is a Power PCB Relay. The applications of it are Boiler control, timers, garage door control, POS automation, interface modules.
Parametrics
1-1393243-8 general specifications: (1)Contact arrangement: 2 form C (CO)or 2 form A (NO); (2)Rated voltage: 250VAC; (3)Max. switching voltage: 400VAC; (4)Rated current: 8A, UL: 10A; (5)Limiting continuous current: 8A, UL: 10A; (6)Limiting making current, max. 4s, duty factor 10%: 15A; (7)Breaking capacity max.: 2000VA; (8)Contact material: AgNi 90/10, AgNi 90.
Features
1-1393243-8 features: (1)2 pole 8A, 2 form C (CO)or 2 form A (NO)contacts; (2)DC or AC coil; (3)5kV/10mm coil-contact, reinforced insulation; (4)Ambient temperature up to 85°C; (5)WG version: product in accordance to IEC60335-1; (6)Reflow version: for THR (Through-Hole Reflow)soldering process.

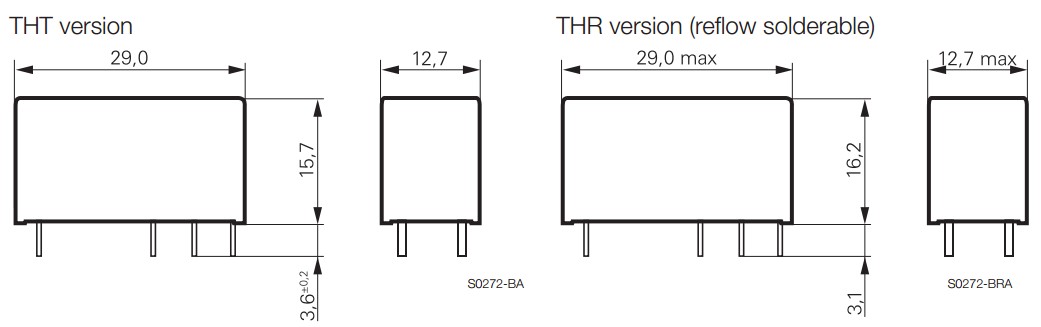

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

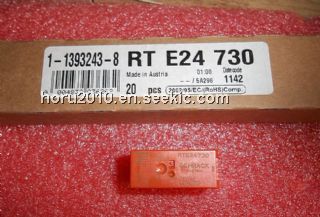

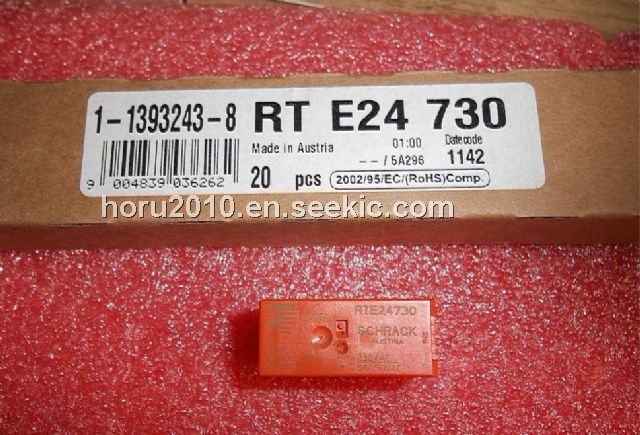

 1-1393243-8 |
TE Connectivity / Schrack |
General Purpose / Industrial Relays RTE24730 |
Data Sheet |
Negotiable |
|
||||||||||||
