Product Summary

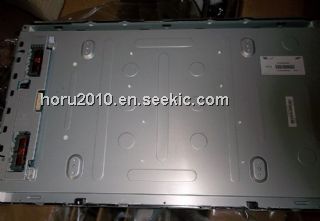

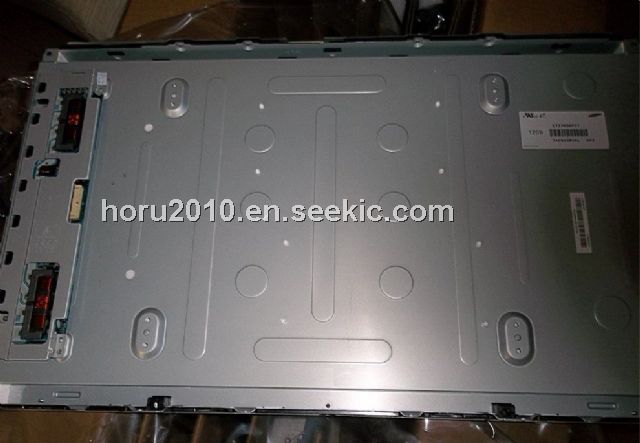

The LTI260AP01 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon TFT(Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel, a driver circuit and a back light unit. The resolution of a 26.0“ is 1366 x 768 and the LTI260AP01 can display up to 16.7 million colors with wide viewing angle of 89° or higher in all directions. This panel is intended to support applications to provide a excellent performance for Flat Panel Display such as Home-alone Multimedia TFT-LCD TV and High Definition TV.
Parametrics
LTI260AP01 absolute maximum ratings: (1)Power Supply Voltage VDD: GND-0.5 to 13.2 V; (2)Dimming control Max. Lum: -5 V; (3)Storage temperature TSTG: -20 to 60 ℃; (4)Surface temperature TSUR: 0 to 60 ℃; (5)Operation temperature TOPR: 0 to 50 ℃.
Features
LTI260AP01 features: (1)RoHS compliance (Pb-free); (2)High contrast & aperture ratio with wide color gamut; (3)APVA( Advanced Patterned Vertical Align)mode; (4)Wide viewing angle (±178°); (5)High speed response; (6)HD resolution (16:9); (7)Low Power consumption; (8)U-Type 4 CCFLs (Cold Cathode Fluorescent Lamp); (9)DE(Data Enable)mode; (10)LVDS (Low Voltage Differential Signaling)interface (1pixel/clock).
Diagrams
