Product Summary

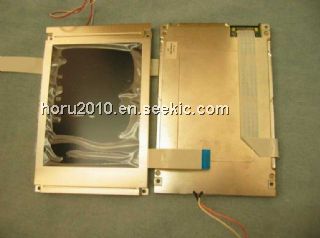

The SX14Q004 is a LCD.

Parametrics

SX14Q004 absolute maximum ratings: (1)power supply for logic:0V to 6.0V; (2)contrast adjustment voltage:0V to VDD; (3)input voltage:-0.3V to VDD+0.3V; (4)input current:0A to 1A.

Features

SX14Q004 features: (1)power supply voltage for logic:3.15V to 3.45V; (2)contrast adjustment voltage:0.8V to 2.8V; (3)power supply current for logic:30mA to 35mA; (4)frame frequency: 60Hz to 80Hz.

Diagrams

SX14Q004 block diagram
