Product Summary

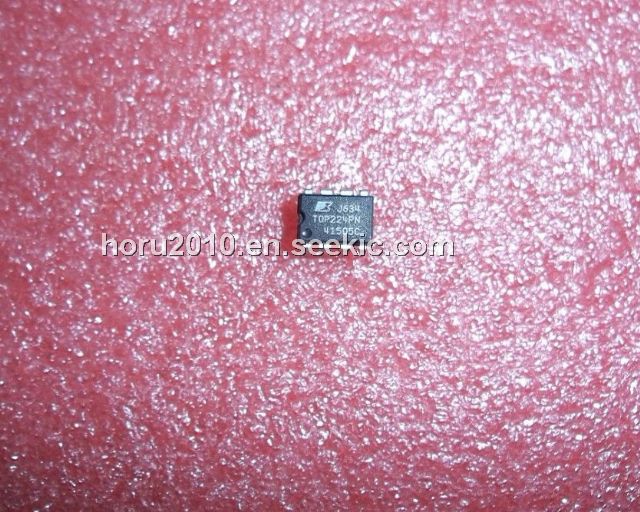

The TOP224PN is a three-terminal off-line PWM switch. It extends the power range from 100W to 150W for 100/115/230 VAC input and from 50W to 90W for 85-265 VAC universal input. This brings TOPSwitch technology advantages to many new applications, i.e. TV, Monitor, Audio amplifiers, etc. Many significant circuit enhancements that reduce the sensitivity to board layout and line transients now make the design even easier.
Parametrics
TOP224PN absoltue maximum ratings: (1)drain voltage: -0.3 to 700V; (2)control voltage: -0.3 to 9V; (3)control current: 100mA; (4)stroage temperature: -65 to 150℃; (5)operating junction temperature: -40 to 150℃; (6)lead temperature: 260℃; (7)thermal impedance: 70℃/W.
Features
TOP224PN features: (1)Lowest cost, lowest component count switcher solution; (2)Cost competitive with linears above 5W; (3)Very low AC/DC losses – up to 90% efficiency; (4)Built-in Auto-restart and Current limiting; (5)Latching Thermal shutdown for system level protection; (6)Implements Flyback, Forward, Boost or Buck topology; (7)Works with primary or opto feedback; (8)Stable in discontinuous or continuous conduction mode; (9)Source connected tab for low EMI.

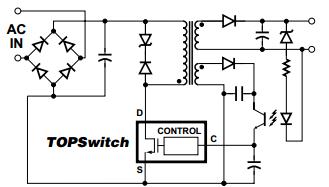

Diagrams
