Product Summary

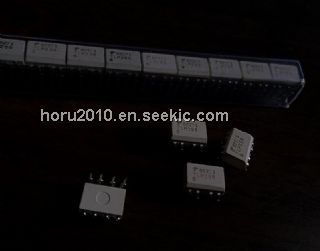

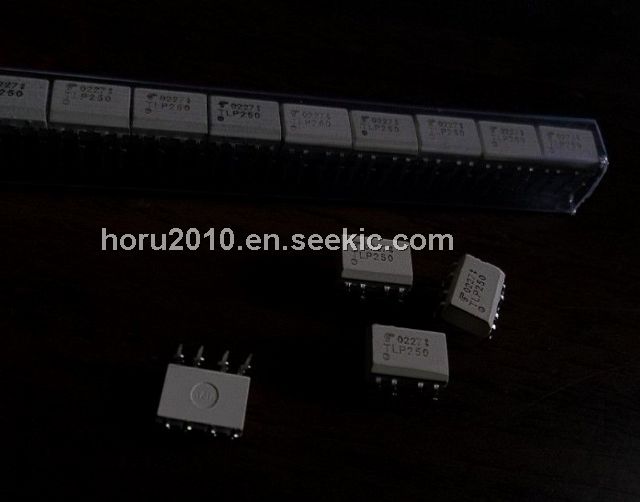

The TLP250 is a photocoupler for air conditioner igbt gate drive power mos fet gate drive. The TLP250 consists of a GaAlAs light emitting diode and a integrated photodetector. This unit is 8-lead DIP. TLP250 is suitable for gate driving circuit of IGBT or power MOS FET.
Parametrics
TLP250 absolute maximum ratings: (1)Forward Current, IF: 20 mA; (2)Forward Current Derating (Ta≥70℃), ΔIF /ΔTa: -0.36 mA /℃; (3)Peak Transient Forward Current, IFPT: 1 A; (4)Reverse Voltage, VR: 5 V; (5)Junction Temperature, Tj: 125℃; (6)“H” Peak Output Current,PW ≤2.5μs , f≤15 kHz, IOPH: -1.5A; PW≤1.0μs , f≤15 kHz, IOPH: -2.0A; (7)“L” Peak Output Current, PW≤2.5μs , f≤15 kHz, IOPL: +1.5A; PW ≤1.0μs , f≤15 kHz, IOPL: +2.0A; (8)Output Voltage, (Ta≤70℃), VO: 35V; (Ta=85℃), VO: 24V; (9)Supply Voltage, (Ta≤70℃), VCC: 35V; (Ta=85℃), VCC: 24V; (10)Output Voltage Derating (Ta≥70℃), ΔVO /ΔTa: -0.73 V /℃; (11)Supply Voltage Derating (Ta≥70℃), ΔVCC /ΔTa: -0.73 V /℃; (12)Junction Temperature, Tj: 125℃; (13)Operating Frequency, f: 25 kHz; (14)Operating Temperature Range, Topr: -20~85℃; (15)Storage Temperature Range, Tstg: -55~125℃; (16)Lead Soldering Temperature(10s), Tsol: 260℃; (17)Isolation Voltage (AC,1min., R.H. ≤60%,Ta=25℃), BVS: 2500 Vrms.
Features
TLP250 features: (1)Input Threshold Current: IF=5mA(MAX); (2)Supply Current(ICC): 11mA(MAX); (3)Supply Voltage(VCC): 10~35V; (4)Output Current(IO): ±2.0A(MAX); (5)Switching Time(tpLH/tpHL): 0.5μs(MAX); (6)Isolation Voltage: 2500Vrms; (7)UL Recognized: UL1577,File No.E67349; (8)Option(D4), VDE Approved: DIN VDE0884/06.92 Certificate No.76823; Maximum Operating Insulation Voltage: 630VPK; Highest Permissible Over Voltage: 4000VPK; (9)Creepage Distance: 6.4mm(MIN); Clearance: 6.4mm(MIN).

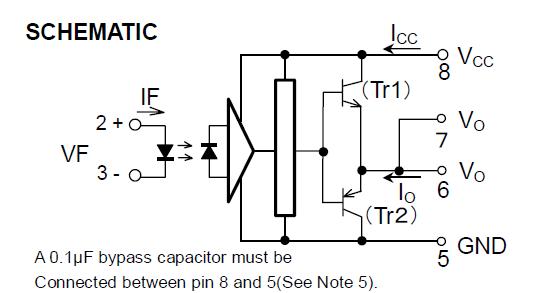

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP250(F) |
Toshiba |
Logic Output Optocouplers 2500Vrms 0.15 High Speed |
Data Sheet |
|
|
||||||||||||
 |
TLP250(INV) |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP250(LF1,F) |
|
PHOTOCOUPLER HS TRANS OUT 8-SMD |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP250(TP1) |
|
PHOTOCOUPLER HS TRANS OUT 8-SMD |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP250(TP1,F) |
Toshiba |
Logic Output Optocouplers 2500Vrms 0.15 High Speed |
Data Sheet |
|
|
||||||||||||
|
TLP250F |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
