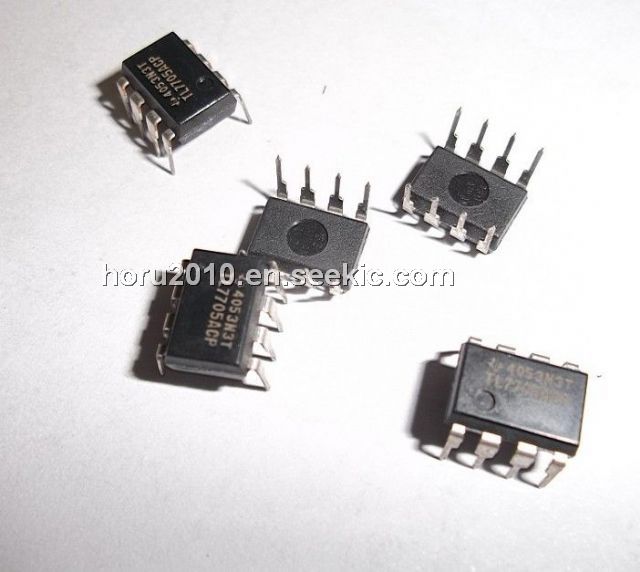

TL7705

TL7705, supply-voltage supervisor, DIP, 20V, -30mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.37~0.48 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	0.48 / Piece
10 ~ 100 :	0.39 / Piece
100 ~ 1000 :	0.37 / Piece

PartNumber:: TL7705

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-26

From Other Seller

Part Number:TL7705
US $0.37 - 0.48
TL7705ACPSR

US $1.00 - 4.00 / Piece
(0) Remove
TL7705bcdr

US $0.20 - 0.23 / Piece
(0) Remove
Quantity:

piece

Product Summary

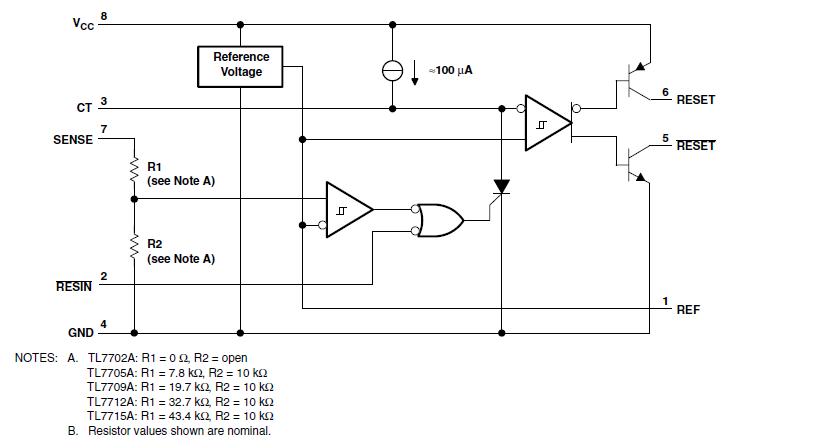

The TL7705 is a supply-voltage supervisor, designed specifically for use as reset controller in microcomputer and microprocessor systems. The TL7705 monitors the supply for undervoltage conditions at the SENSE input. During power up, the RESET output becomes active (low) when VCC attains a value approaching 3.6 V. At this point (assuming that SENSE is above VIT+), the delay timer function activates a time delay, after which output RESET and RESET go inactive (high and low, respectively).

Parametrics

TL7705 absolute maximum ratings: (1)Supply voltage, VCC: 20 V; (2)Input voltage range, VI, RESIN: －0.3 V to 20 V; (3)Input voltage range, VI, SENSE: TL7705A: －0.3 V to 20 V; (4)High-level output current, IOH, RESET: －30 mA; (5)Low-level output current, IOL, RESET: 30 mA; (6)Package thermal impedance, JA: D package: 97℃/W; P package: 85℃/W; PS package: 95℃/W; (7)Operating virtual junction temperature, TJ: 150℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (9)Storage temperature range, Tstg: －65℃ to 150℃.

Features

TL7705 features: (1)Power-on reset generator; (2)Automatic reset generation after voltage drop; (3)Wide supply-voltage range; (4)Precision voltage sensor; (5)Temperature-compensated voltage reference; (6)True and complement reset outputs; (7)Externally adjustable pulse duration.
