TL072C

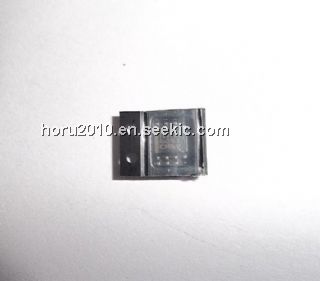

TL072C, JFET-input operational amplifier, SOIC, 18 V, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.16~0.16 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.16 / Piece

PartNumber:: TL072C

Brand:: Texas Instruments - TI | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 0/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-19

From Other Seller

Part Number:TL072C
US $0.16 - 0.16
TL072CP DIP-8 TL072 072 AMPLIFIERS NEW

US $0.09 - 0.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

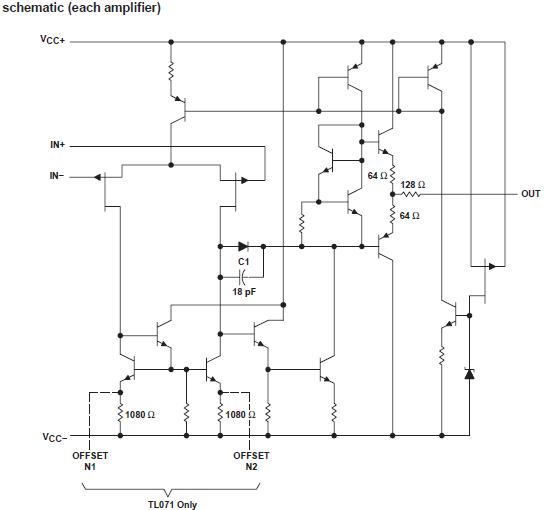

The TL072C is a JFET-input operational amplifier with low input bias and offset currents and fast slew rate. The low harmonic distortion and low noise make the TL072C ideally suited for high-fidelity and audio preamplifier applications. Each amplifier features JFET inputs (for high input impedance) coupled with bipolar output stages integrated on a single monolithic chip. The TL072C is characterized for operation from 0℃ to 70℃.

Parametrics

TL072C absolute maximum ratings: (1)Supply voltage: VCC+: 18 V; VCC-: -18 V; (2)Differential input voltage, VID: ±30 V; (3)Input voltage, VI: ±15 V; (4)Duration of output short circuit: Unlimited; (5)Package thermal impedance, θJA: 97℃/W; (6)Operating virtual junction temperature, TJ: 150℃; (7)Case temperature for 60 seconds: 260℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 300℃; (9)Storage temperature range, Tstg: -65 to 150℃.

Features

TL072C features: (1)Low Power Consumption; (2)Wide Common-Mode and Differential Voltage Ranges; (3)Low Input Bias and Offset Currents; (4)Output Short-Circuit Protection; (5)Low Total Harmonic Distortion: 0.003% Typ; (6)Low Noise Vn = 18 nV/Hz Typ at f = 1 kHz; (7)High Input Impedance: JFET Input Stage; (8)Internal Frequency Compensation; (9)Latch-Up-Free Operation; (10)High Slew Rate: 13 V/μs Typ; (11)Common-Mode Input Voltage Range Includes VCC+.
