Product Summary

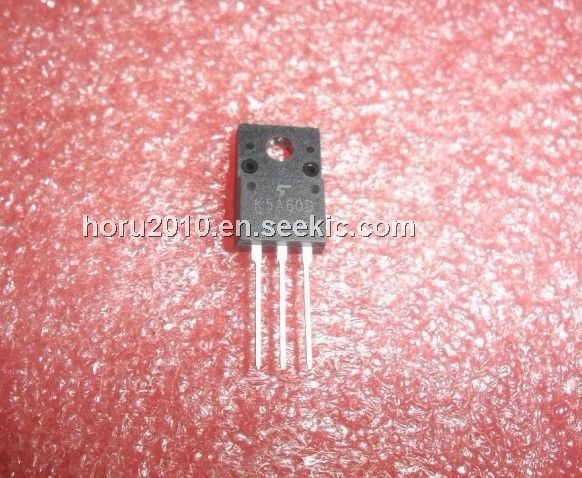

The TK5A60D is a switching Regulator.

Parametrics

TK5A60D absolute maximum ratings: (1)Drain-source voltage, VDSS: 600 V; (2)Gate-source voltage, VGSS: ±30 V; (3)Drain current Pulse (t = 1 ms), DC (Note 1), ID 5A; (Note 1), IDP: 20A; (4)Drain power dissipation (Tc = 25℃), PD: 35 W; (5)Single pulse avalanche energy(Note 2), EAS: 189 mJ; (6)Avalanche current, IAR: 5 A; (7)Repetitive avalanche energy (Note 3), EAR: 3.5 mJ; (8)Channel temperature, Tch: 150℃; (9)Storage temperature range, Tstg: -55 to 150℃.

Features

TK5A60D features: (1)Low drain-source ON-resistance: RDS (ON) = 1.2 Ω(typ.); (2)High forward transfer admittance: Yfs = 3.0 S (typ.); (3)Low leakage current: IDSS = 10μa(max) (VDS = 600 V); (4)Enhancement-mode: Vth = 2.4 to 4.4 V (VDS = 10 V, ID = 1 mA).

Diagrams

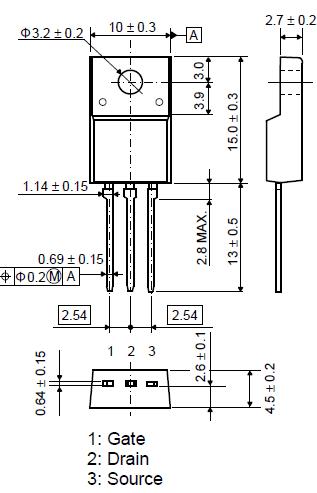

TK5A60D block diagram
