Product Summary
The TD62504P is a 7ch single driver comprised of seven or five NPN transistor arrays. Applications include relay, hammer, lamp and display (LED) drivers.
Parametrics
TD62504P absolute maximum ratings: (1)Collector-emitter voltage, VCEO: 35V; (2)Collector-base voltage, VCBO: 50V; (3)Collector current, IC: 200mA/ch; (4)Input voltage, VIN: -0.5 to 30V; (5)Power dissipation, PD: 1.0W; (6)Operating temperature, Topr: -40 to 105℃; (7)Storage temperature, Tstg: -55 to 150℃.
Features
TD62504P features: (1)Package type: DIP16 pin; (2)RIN = 10.5kΩ; (3)High sustainning voltage output: VCEO =35V; (4)Output current(single output): 200mA; (5)Low saturation voltage: VCE(sat)=0.8V@LOUT=150mA; (6)Inputs compatible with various type of logic; (7)Wide operating temperature range.

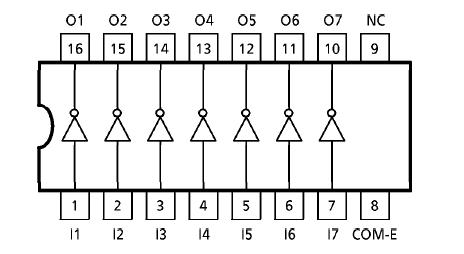

Diagrams
