Product Summary

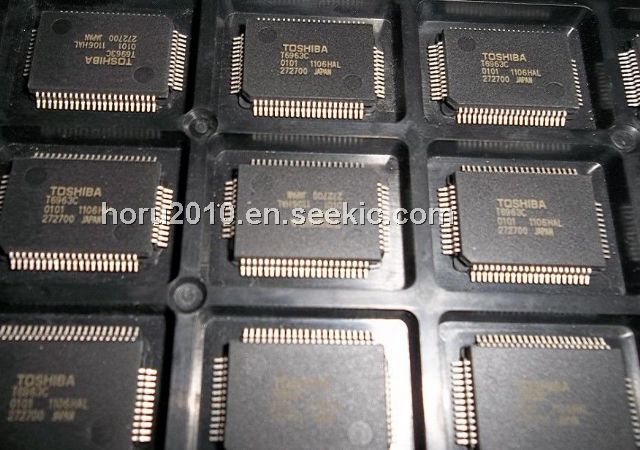

The T6963C-0101 is a DOT matrix LCD control LSI. The T6963C-0101 is an LCD controller designed to be used with LCD control driver LSls and data display memories. The T6963C-0101 has an 8-bit parallel data bus and control lines for reading or writing through an MPU interface. It can be directly connected to a TMPZ-80. It has a 128-word character generator ROM which can control an external display RAM of up to 64 Kbytes. Allocation of text, graphics and external character generator RAM can be made easily and the display window can be moved freely within the allocated memory range. The T6963C-0101 supports a very broad range of LCD formats by allowing selection of different combinations via a set of programmable inputs. It can be used in text, graphic and combination text-and-graphic modes, and includes various attribute functions.

Parametrics

T6963C-0101 absolute maximum ratings: (1)Supply Voltage : - 0.3 to 7.0 V; (2)Input Voltage : - 0.3 to VDD + 0.3 V; (3)Operating Temperature : - 20 to 70 ℃; (4)Storage Temperature : - 55 to 125 ℃.

Features

T6963C-0101 features: (1)Display duty: 1/16 to 1/128; (2)A 128-word character generator ROM (code 0101) T6963C-0101 is built in as standard.

Diagrams

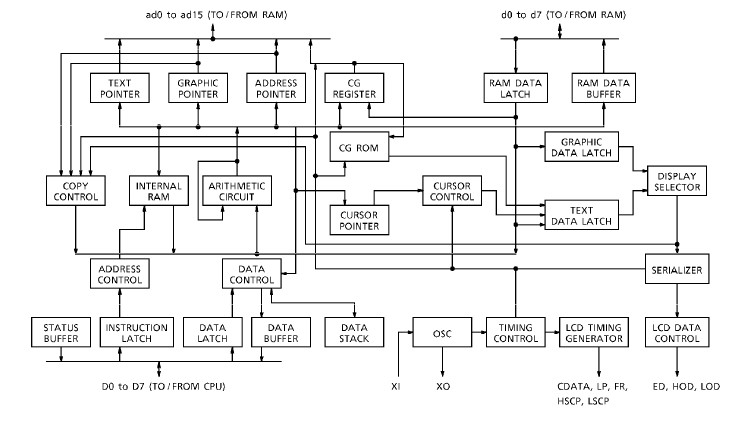

T6963C-0101 block diagram
