Product Summary
The SP8M3 is a switch. The applications of the SP8M3 include Power switching, DC / DC converter.
Parametrics
SP8M3 absolute maximum ratings: (1)Drain-source voltage, VDSS: 30V; (2)Gate-source voltage, VGSS: 20V; (3)Drain current, Continuous, ID: 5A; Pulsed, IDP: ±20A; (4)Source current (Body diode), Continuous, IS: 1.6A; Pulsed, ISP: 20A; (5)Total power dissipation, PD: 2W; (6)Channel temperature, TCH: 150℃; (7)Storage temperature, TSTG: -55 to +150℃.
Features

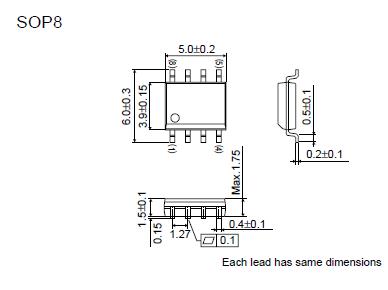

SP8M3 features: (1)Low on-resistance; (2)Built-in G-S Protection Diode; (3)Small and Surface Mount Package (SOP8).
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() SP8M3 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||
![]() |
![]() SP8M3TB |
![]() ROHM Semiconductor |
![]() MOSFET |
![]() Data Sheet |
![]() Negotiable |
|
||||||
![]() |
![]() SP8M3FU6TB |
![]() ROHM Semiconductor |
![]() MOSFET SWITCHING Nch/Pch 4V |
![]() Data Sheet |
![]()
|
|
