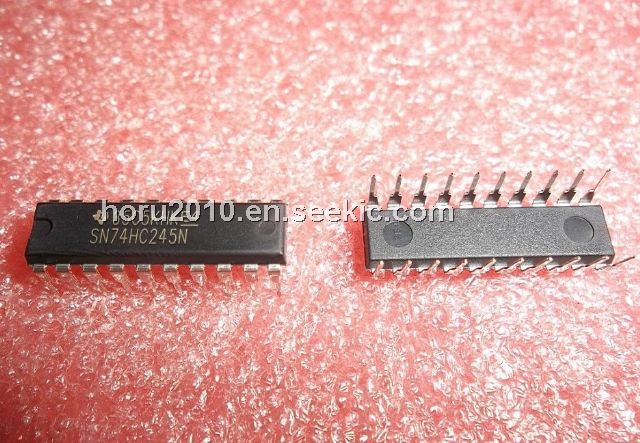

SN74HC245N

octal bus transceiver, ±70mA, 750mW, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.25 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 99 :	0.25 / Piece
100 ~ 1000 :	0.20 / Piece

PartNumber:: SN74HC245N

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-12

From Other Seller

Part Number:SN74HC245N
US $0.20 - 0.25
Quantity:

piece

Product Summary

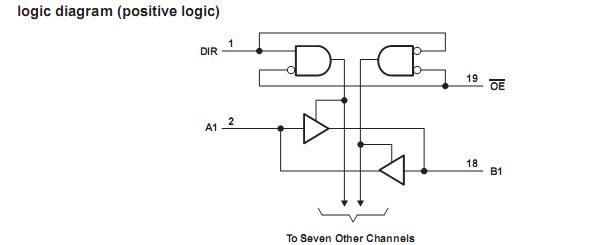

The 74HC245N is a high-speed Si-gate CMOS device and is pin compatible with Low-Power Schottky TTL (LSTTL) . The 74HC245N is an octal transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive directions. The 74HC245N is an output enable input (OE) for easy cascading and a send/receive input (DIR) for direction control.

Parametrics

74HC245N absolute maximum ratings: (1) supply voltage Vcc: -0.5 to 7V; (2) input diode current IIK: ±20mA (VI< -0.5V or Vcc>V +0.5V) ; (3) output diode current IOK: ±20mA (V < -0.5V or Vo>Vcc +0.5V) ; (4) output source or sink current Io: ±35mA (Vo= -0.5V to Vcc +0.5V) ; (5) Vcc or GND current: ±70mA; (6) storage temperature Tstg: -65 to +150°C; (7) total power dissipation Ptot: 750mW.

Features

74HC245N features: (1) Octal bidirectional bus interface; (2) Non-inverting 3-state outputs; (3) Multiple package options; (4) Complies with JEDEC standard no. 7A; (5) ESD protection; (6) Specified from -40 Cto+85°C and from -40 to +125°C.
