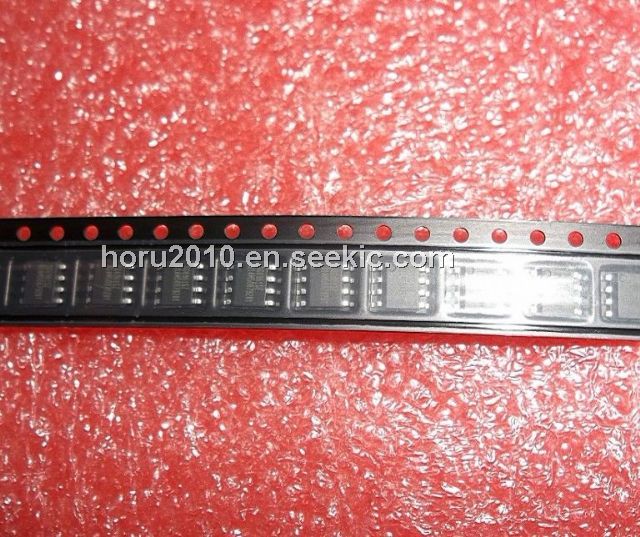

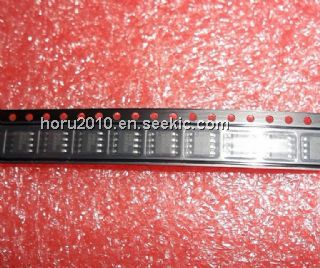

SG6961SZ

SG6961SZ, Power Factor Controller, SOP, 25V, 800mW, Fairchild Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.25~0.25 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 99 :	0.25 / Piece

PartNumber:: SG6961SZ

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 0/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-02-18

From Other Seller

Part Number:SG6961SZ
US $0.25 - 0.25
Quantity:

piece

Product Summary

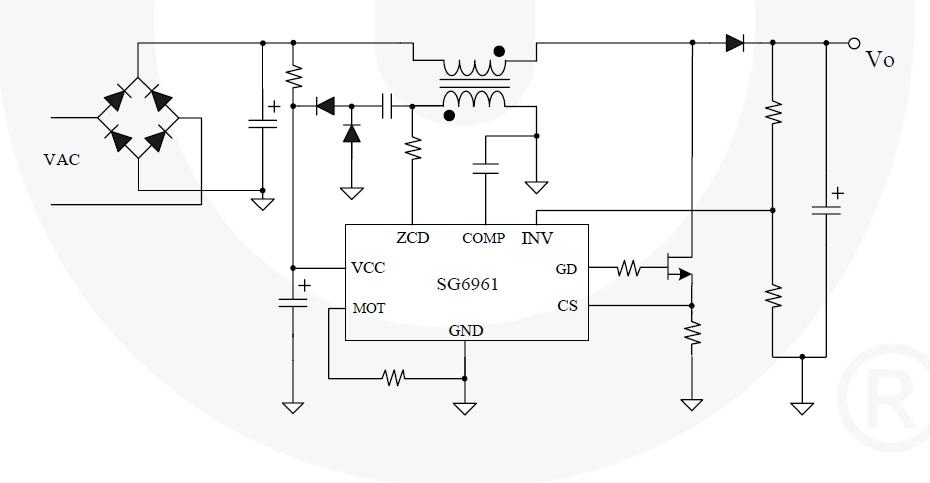

The SG6961SZ is an 8-pin boundary mode PFC controller IC intended for controlling PFC pre-regulators. The SG6961SZ provides a controlled on-time to regulate the output DC voltage and achieve natural power factor correction. The maximum on-time of the external switch is programmable to ensure safe operation during AC brownouts. An innovative multi-vector error amplifier is built in to provide rapid transient response and precise output voltage clamping. The applications of the SG6961SZ include Electric Lamp Ballasts, AC-DC Switching Mode Power Converter, Open-Frame Power Supplies and Power Adapters, Flyback Power Converters with ZCS/ZVS.

Parametrics

SG6961SZ absolute maximum ratings: (1)VDD, DC Supply Voltage: 25 V; (2)VHIGH, GD: -0.3 to 25.0 V; (3)VLOW, Others (INV, COMP, MOT, CS,): -0.3 to 7.0 V; (4)Vzcd, Input Voltage to ZCD Pin: -0.3 to 12.0 V; (5)PD, Power Dissipation, DIP-8: 800mW; SOP-8: 400mW; (6)RθJ-A, Thermal Resistance (Junction-to-Air), DIP-8: 48.45℃/W; SOP-8: 62.70℃/W; (7)TJ, Operating Junction Temperature: -40 to +150℃; (8)TSTG, Storage Temperature Range: -65 to +150℃; (9)TL, Lead Temperature (Wave Soldering or Infrared, 10 Seconds): 260℃; (10)ESD, Electrostatic Discharge Capability, Human Body Model: 2.0 kV; Electrostatic Discharge Capability, Machine Model: 200 V.

Features

SG6961SZ features: (1)Boundary Mode PFC Controller; (2)Low Input Current THD; (3)Controlled On-Time PWM; (4)Zero-Current Detection; (5)Cycle-by-Cycle Current Limiting; (6)Leading-Edge Blanking Instead of RC Filtering; (7)Low Start-up Current (10μA Typical); (8)Low Operating Current (4.5mA Typical); (9)Feedback Open-Loop Protection; (10)Programmable Maximum On-Time (MOT); (11)Output Over-Voltage Clamping Protection; (12)Clamped Gate Output Voltage 16.5V.
