SG5841JDZ

Product Summary

The SG5841JDZ is a highly integrated Green-Mode PWM controller provides several features to enhance the performance of flyback converters. To minimize standby power consumption, a proprietary green-mode function provides off-time modulation to continuously decrease the switching frequency at light-load conditions. This green-mode function enables the power supply to meet international power conservation requirements. To further reduce power consumption, the SG5841JDZ is manufactured using the BiCMOS process. The applications of the SG5841JDZ include Power Adapters, Open-Frame SMPS.

Parametrics

SG5841JDZ absolute maximum ratings: (1)VVDD, Supply Voltage: 30 V; (2)VVIN, Input Terminal: 30 V; (3)VFB, Input Voltage to FB Pin: -0.3 to 7.0 V; (4)VSENSE, Input Voltage to SENSE Pin: -0.3 to 7.0 V; (5)VRT, Input Voltage to RT Pin: -0.3 to 7.0 V; (6)VRI, Input Voltage to RI Pin: -0.3 to 7.0 V; (7)PD, Power Dissipation (TA < 50℃), DIP: 800.0mW; SOP: 400.0mW; (8)RθJA Thermal Resistance (Junction-to-Air), DIP: 82.5℃/W; SOP: 141.0℃/W; (9)RθJC Thermal Resistance (Junction-to-Case), DIP: 59.7℃/W; SOP: 80.8℃/W; (10)TJ, Operating Junction Temperature: -40 to +125℃; (11)TSTG, Storage Temperature Range: -55 to +150℃; (12)TL, Lead Temperature (Wave Soldering or Infrared, 10 Seconds): 260 ℃; (13)VESD,HBM, Electrostatic Discharge Capability, Human Body Model: 3.0 KV; (14)VESD,MM, Electrostatic Discharge Capability, Machine Model: 250 V.

Features

SG5841JDZ features: (1)Green-Mode PWM Controller; (2)Low Start-Up Current (14μA); (3)Low Operating Current (4mA); (4)Programmable PWM Frequency with Hopping; (5)Peak-Current-Mode Control; (6)Cycle-by-Cycle Current Limiting; (7)Synchronized Slope Compensation; (8)Leading-Edge Blanking; (9)Constant Output Power Limit; (10)Totem Pole Output with Soft Driving; (11)VDD Over-Voltage Clamping; (12)Programmable Over-Temperature Protection (OTP); (13)Internal Open-Loop Protection; (14)VDD Under-Voltage Lockout (UVLO); (15)GATE Output Maximum Voltage Clamp (18V).

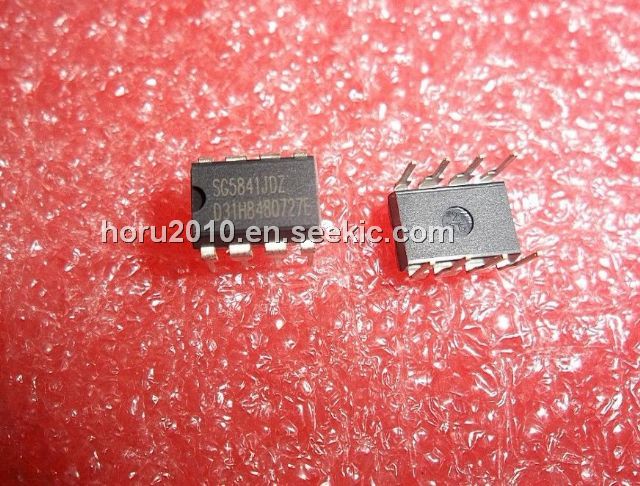

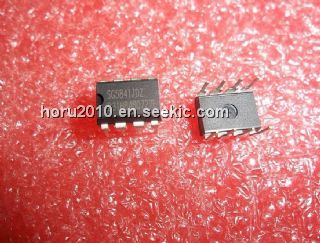

Diagrams
