Product Summary
The PC716V is a high sensitivity, high output type photocoupler. The applications of the PC716V include DC-DC SSRs, Power monitors, welding machines, System appliances, measuring instruments, Signal transmission between circuits of different potentials and impedances.
Parametrics
PC716V absolute maximum ratings: (1)Forward current IF: 50mA; (2)Peak forward current IFM: 1A; (3)Reverse voltage VR: 6V; (4)Power dissipation P: 70mW; (5)Collector-emitter voltage VCEO: 35V; (6)Emitter-collector voltage VECO: 6V; (7)Collector current IC: 200mA; (8)Collector power dissipation PC: 300mW; (9)Total power dissipation: 350mW; (10)Isolation voltage: 5000V; (11)Operating temperature: -25℃ to +100℃; (12)Storage temperature: -40℃ to +125℃; (13)Soldering temperature: 260℃.
Features
PC716V features: (1)High current transfer ratio; (2)High collector power dissipation; (3)High isolation voltage between input and output; (4)Recognized by UL, file No. E64380.

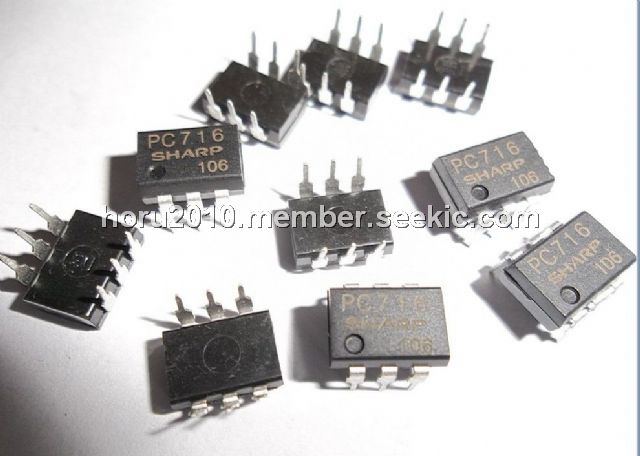

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PC716V |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
PC716V0NSZX |
|
PHOTOCOUPLER DARL OUT 6-DIP |
Data Sheet |
Negotiable |
|
||||
|
PC716V0YSZX |
|
PHOTOCOUPLER DARL OUT VDE 6-DIP |
Data Sheet |
Negotiable |
|
||||
