Product Summary

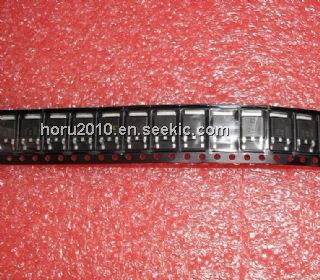

The NTD4806NT4G is a 30 V, 76 A, Single N--Channel, DPAK/IPAK Power MOSFET. The applications of the NTD4806NT4G include CPU Power Delivery, DC--DC Converters, Low Side Switching.
Parametrics
NTD4806NT4G absolute maximum ratings: (1)Drain-to-Source Voltage, VDSS: 30 V; (2)Gate-to-Source Voltage, VGS: ±20 V; (3)Continuous Drain Current (RθJA) (Note 1), TA = 25℃, ID: 14 A; TA = 85℃: 11A; (4)Power Dissipation (RθJA) (Note 1), TA = 25℃, PD: 2.14W; (5)Continuous Drain Current (RθJA) (Note 2), TA = 25℃, ID: 11 A; TA = 85℃: 8.8A; (6)Power Dissipation(RθJA) (Note 2), TA = 25℃, PD: 1.33 W; (7)Continuous Drain Current (RθJC)(Note 1), TC = 25℃, ID: 76 A; (8)TC = 85℃: 59A; (9)Power Dissipation(RθJC) (Note 1), TC = 25℃, PD: 60 W; (10)Pulsed Drain Current tp=10ms TA = 25℃, IDM: 150 A; (11)Current Limited by Package TA = 25℃, IDmaxPkg: 45 A; (12)Operating Junction and Storage Temperature, TJ, Tstg: -55 to; (13)175℃; (14)Source Current (Body Diode), IS: 50 A; (15)Drain to Source dV/dt, dV/dt: 6.0 V/ns.
Features
NTD4806NT4G features: (1)Low RDS(on) to Minimize Conduction Losses; (2)Low Capacitance to Minimize Driver Losses; (3)Optimized Gate Charge to Minimize Switching Losses; (4)These are Pb--Free Devices.

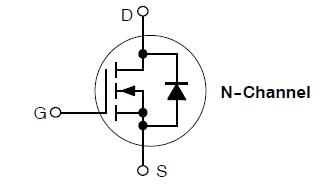

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NTD4806NT4G |
ON Semiconductor |
MOSFET NFET 30V 76A 6MOHM |
Data Sheet |
|
|
||||||||||||
