Product Summary
The NJW1186 is an audio processor with SRS WOW. It includes all of functions processing audio signal for TV, such as volume, balance, tone control and 4ch input selector. All of internal status and variables are controlled by I2C BUS.
Parametrics
NJW1186 absolute maximum ratings: (1)Supply Voltage, V+: 15 V; (2)Power Dissipation, PD: 1500mW; (3)Operating Temperature Range, Topr: -20 to +75℃; (4)Storage Temperature Range, Tstg: -40 to +125℃.
Features
NJW1186 features: (1)Operating Voltage: 8 to 13 V; (2)SRS WOW (including SRS 3D, FOCUS and TruBass function); (3)Simulated Stereo; (4)4ch Input Selector; (5)Volume: 0 to -80dB (0.5dB/step), MUTE; (6)Balance: 0 to -30dB (1dB/step), MUTE; (7)Tone Control: -15dB to +15dB(1dB/step); (8)I2C BUS Interface; (9)Bi-CMOS Technology; (10)Package Outline: QFP48-P1.

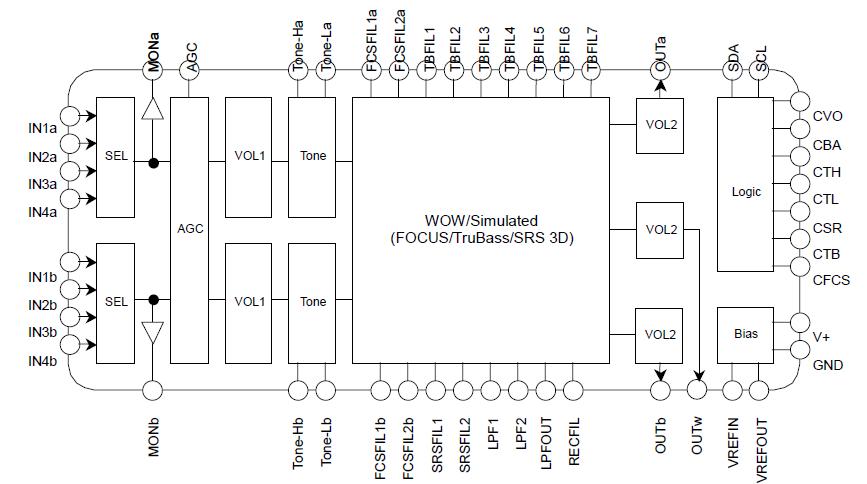

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NJW1186M |
NJR |
Processors - Application Specialized 5.1 Ch Surround Processor |
Data Sheet |
|
|
||||||
|
NJW1186M-TE2 |
NJR |
Processors - Application Specialized 5.1 Ch Surround Processor |
Data Sheet |
|
|
||||||
