Product Summary

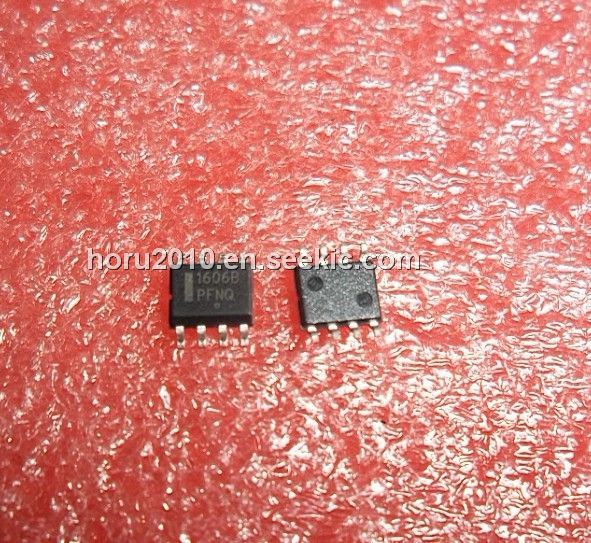

The NCP1606B is an active power factor controller specifically designed for use as a pre-converter in electronic ballasts, ac-dc adapters and other medium power off line converters (typically up to 300 W). It embeds a Critical Conduction Mode (CRM) scheme that substantially exhibits unity power factor across a wide range of input voltages and power levels. Housed in a DIP8 or SOIC-8 package, the NCP1606B minimizes the number of external components. Its integration of comprehensive safety protection features makes it an excellent driver for rugged PFC stages. The applications of the NCP1606B include Electronic Light Ballast, AC Adapters, TVs, Monitors, All Off Line Appliances Requiring Power Factor Correction.
Parametrics
NCP1606B absolute maximum ratings: (1)Output Drive Capability, IDRV(source): +500mA; IDRV(sink): -800mA; (2)Maximum DRV Pin Voltage, VDRV: -0.3 to +20 V; (3)Power Supply Input, VCC: -0.3 to +20 V; (4)Input Voltage, VIN: -0.3 to +9 V; (5)Operating Junction Temperature Range, TJ: -25 to +125℃; (6)Maximum Junction Temperature, TJmax: 150℃; (7)Storage Temperature Range, TSmax: -65 to 150℃; (8)Lead Temperature (Soldering, 10 s), TLmax: 300℃.
Features
NCP1606B features: (1)"Unity" Power Factor; (2)No Need for Input Voltage Sensing; (3)Latching PWM for Cycle by Cycle On Time Control (Voltage Mode); (4)High Precision Voltage Reference (±1.5% over the VCC and Temp; (5)Ranges); (6)Very Low Startup Current Consumption (≤ 40μA); (7)Low Typical Operating Current (2.1 mA); (8)-500 mA / +800 mA Totem Pole Gate Driver; (9)Undervoltage Lockout with Hysteresis; (10)Pin to Pin Compatible with Industry Standards.

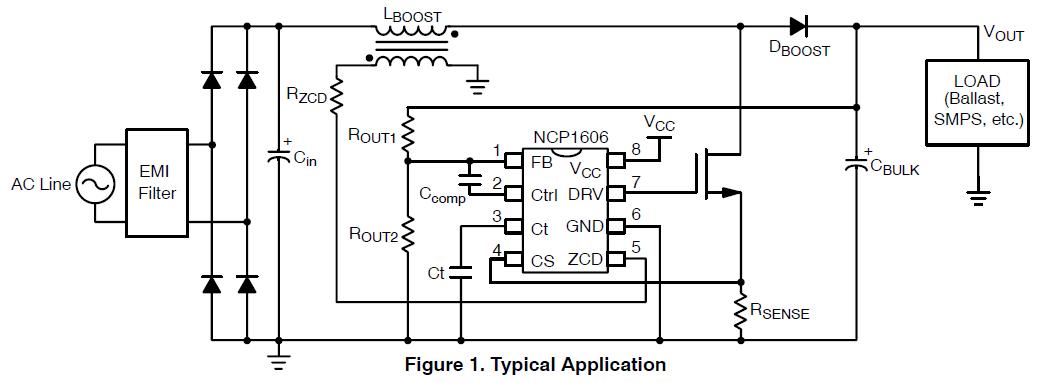

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NCP1606BDR2G |
ON Semiconductor |
Other Power Management PWR FCTR CONTROLLER |
Data Sheet |
|
|
||||||||||||
|
NCP1606BOOSTGEVB |
ON Semiconductor |
Power Management IC Development Tools OSPI NCP1606 100 W BOOST |
Data Sheet |
|
|
||||||||||||
|
NCP1606BPG |
ON Semiconductor |
Power Factor Correction ICs LO CST PWR FCTR CONT |
Data Sheet |
Negotiable |
|
||||||||||||
