Product Summary

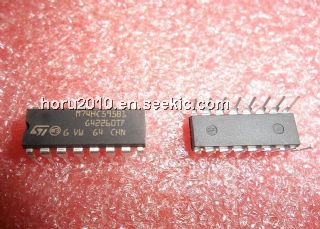

The MM74HC595N is an 8-bit shift register with output latches. The MM74HC595N high speed shift register utilizes advanced silicon-gate CMOS technology. The MM74HC595N possesses the high noise immunity and low power consumption of standard CMOS integrated circuits, as well as the ability to drive 15 LS-TTL loads. The MM74HC595N contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register.
Parametrics
MM74HC595N absolute maximum ratings: (1) Supply Voltage (Vcc) : -0.5 to +7V; (2) DC Input Voltage (VIN) : -1.5 to Vcc +1.5V; (3) DC Output Voltage (VOUT) : -0.5 to Vcc +0.5V; (4) Clamp Diode Current (IIK, IOK) : ±20mA; (5) DC Output Current, per pin (IOUT) : ±35mA; (6) or GND Current,per pin (Icc) : ±70mA; (7) Storage Temperature Range TSTG: -65 to +150°C; (8) Power Dissipation (PD) : 500mW; (9) S.O. Package only: 600mW; (10) Lead Temperature (TL) (Soldering 10 seconds) : 260°C.
Features
MM74HC595N features: (1) Low quiescent current: 80μA maximum (74HC Series) ; (2) Low input current: 1μA maximum; (3) 8-bit serial-in, parallel-out shift register with storage; (4) Wide operating voltage range: 2-6V; (5) Cascadable; (6) Shift register has direct clear; (7) Guaranteed shift frequency: DC to 30MHz.

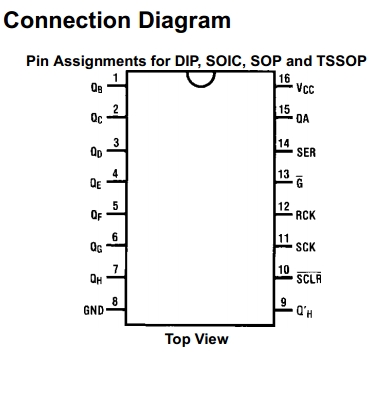

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MM74HC595N |
Fairchild Semiconductor |
Counter Shift Registers 8-Bit Shift Register |
Data Sheet |
Negotiable |
|
||||
|
MM74HC595N_Q |
Fairchild Semiconductor |
Counter Shift Registers 8-Bit Shift Register |
Data Sheet |
Negotiable |
|
||||
