Product Summary
The MIP411 is a Silicon MOS IC. Application areas of the MIP411 include Switching power supply (to 90W), AC adaptor, Battery charger.
Parametrics
MIP411 absolute maximum ratings: (1)Drain voltage: 700V; (2)Control voltage: 8V; (3)Output current: 0.3A; (4)Control current: 0.1mA.
Features
MIP411 features: (1)Single chip IC with high breakdown voltage power MOS FET and; (2)CMOS control circuits; (3)Allowing to input worldwide mains (AC 85 to 274V); (4)A pulse-by-pulse overcurrent protection circuit and a timer autorestart circuit are integrated.

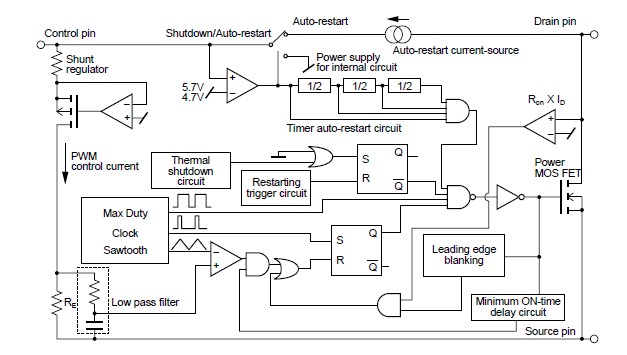

Diagrams
