Product Summary

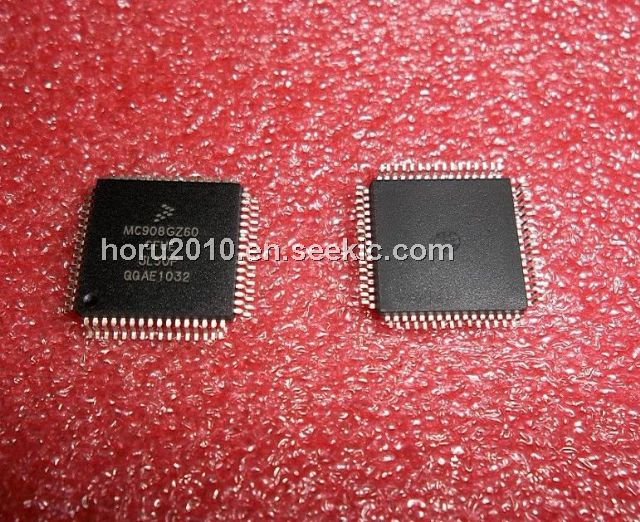

The MC908GZ60CFUE is a low-cost, high-performance 8-bit microcontroller unit. The MC908GZ60CFUE uses the enhanced M68HC08 central processor unit (CPU08) and are available with a variety of modules, memory sizes and types, and package types.

Parametrics

MC908GZ60CFUE absolute maximum ratings: (1)Supply voltage VDD: –0.3 to + 6.0 V; (2)Input voltage VIn VSS: – 0.3 to VDD + 0.3 V; (3)Maximum current per pin excluding those specified below I: ± 15 mA; (4)Maximum current for pins PTC0–PTC4 IPTC0–PTC4: ±25mA; (5)Maximum current into VDD Imvdd: 150 mA; (6)Maximum current out of VSS Imvss: 150 mA; (7)Storage temperature Tstg: –55 to +150℃.

Features

MC908GZ60CFUE features: (1)High-performance M68HC08 architecture optimized for C-compilers; (2)Fully upward-compatible object code with M6805, M146805, and M68HC05 Families; (3)8-MHz internal bus frequency; (4)Clock generation module supporting 1-MHz to 8-MHz crystals; (5)MSCAN08 (scalable controller area network) controller (implementing 2.0b protocol as defined in BOSCH specification dated September 1991); (6)FLASH program memory security(1); (7)On-chip programming firmware for use with host personal computer which does not require high voltage for entry; (8)In-system programming (ISP).

Diagrams

MC908GZ60CFUE block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC908GZ60CFUE
MC908GZ60CFUE
Freescale Semiconductor
8-bit Microcontrollers (MCU) 8 BIT MCU WITH 60K FLASH
Data Sheet
0-1: $7.49
1-25: $6.29
25-100: $5.79
100-500: $4.94
