Product Summary

The MC34072P is a single supply operational amplifier. Quality bipolar fabrication with innovative design concepts are employed for the MC34072P, the MC34072P series of monolithic operational amplifiers. This series of operational amplifiers offer 4.5 MHz of gain bandwidth product, 13 V/μs slew rate and fast settling time without the use of JFET device technology. Although this series can be operated from split supplies, it is particularly suited for single supply operation, since the common mode input voltage range includes ground potential (VEE). With a Darlington input stage, this series exhibits high input resistance, low input offset voltage and high gain.

Parametrics

MC34072P absolute maximum ratings: (1)Supply Voltage (from VEE to VCC), VS: +44 V; (2)Input Differential Voltage Range, VIDR: (Note 1) V; (3)Input Voltage Range, VIR: (Note 1) V; (4)Output Short Circuit Duration (Note 2), tSC: Indefinite Sec; (5)Operating Junction Temperature, TJ: +150℃; (6)Storage Temperature Range, Tstg: -60 to +150℃.

Features

MC34072P features: (1)Wide Bandwidth: 4.5 MHz; (2)High Slew Rate: 13 V/μs; (3)Fast Settling Time: 1.1μs to 0.1%; (4)Wide Single Supply Operation: 3.0 V to 44 V; (5)Wide Input Common Mode Voltage Range: Includes Ground (VEE); (6)Low Input Offset Voltage: 3.0 mV Maximum (A Suffix); (7)Large Output Voltage Swing: -14.7 V to +14 V (with ±15 V Supplies); (8)Large Capacitance Drive Capability: 0 pF to 10,000 pF; (9)Low Total Harmonic Distortion: 0.02%; (10)Excellent Phase Margin: 60 °; Excellent Gain Margin: 12 dB; (11)Output Short Circuit Protection; (12)ESD Diodes/Clamps Provide Input Protection for Dual and Quad; (13)Pb-Free Packages are Available.

Diagrams

MC34072P block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

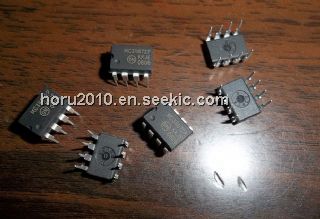

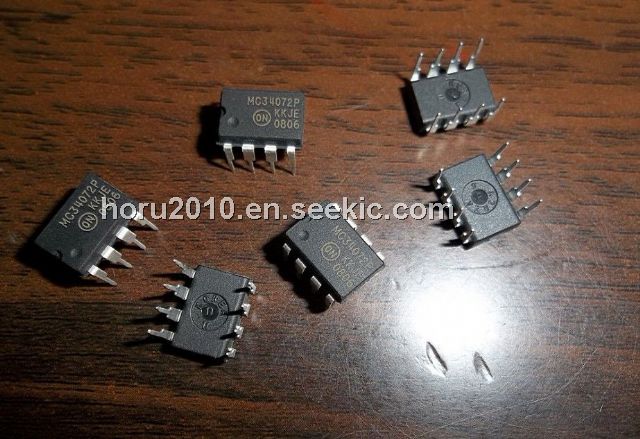

MC34072P
MC34072P

ON Semiconductor

Operational Amplifiers - Op Amps 3-44V Dual 5mV VIO

Data Sheet

Negotiable
MC34072PG
MC34072PG

ON Semiconductor

Operational Amplifiers - Op Amps 3-44V Dual 5mV VIO Commercial Temp

Data Sheet

0-1: $0.62
1-25: $0.50
25-100: $0.39
100-500: $0.28
