Product Summary
The M62339FP is an integrated circuit semiconductor of CMOS structure with 4 channels of built in D/A converters with output buffer operational amplifiers. The input is 2-wires serial method is used for the transfer format of digital data to allow connection with a microcomputer with minimum wiring. The output buffer operational amplifier employs AB class output circuit with sync and source drive capacity of 1.0 mA or more, and it operates in the whole voltage range from VCC to ground. The applications of the M62339FP include home-use and industrial equipment, Signal gain control or automatic adjustment of display-monitor or CTV.
Parametrics
M62339FP absolute maximum ratings: (1)Supply voltage, VCC: -0.3 to +7.0 V; (2)Input voltage, Vin: -0.3 to VCC + 0.3 V; (3)Output voltage, VO: -0.3 to VCC + 0.3 V; (4)Power dissipation, Pd: 417 (P) / 272 (FP) mW; (5)Operating temperature, Topr: -20 to +85℃; (6)Storage temperature, Tstg: -55 to +125℃.
Features
M62339FP features: (1)Digital data transfer format: I2C BUS serial data method; (2)Output buffer operational amplifier. It operates in the whole range from VCC to ground; (3)High output current drive capacity: 1.0 mA over.

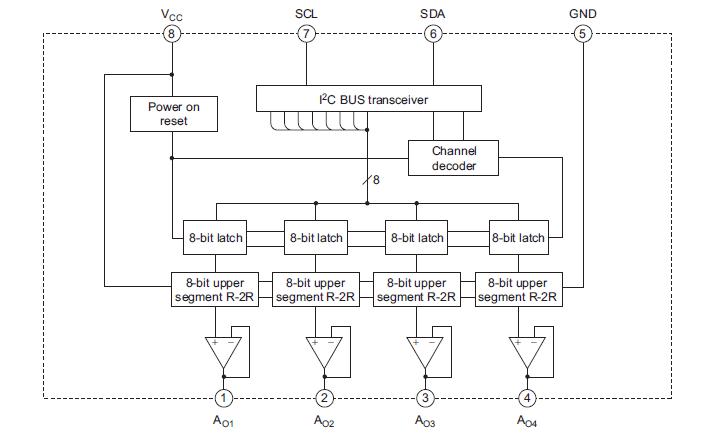

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 M62339FP |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
