Product Summary

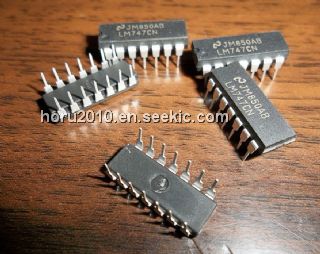

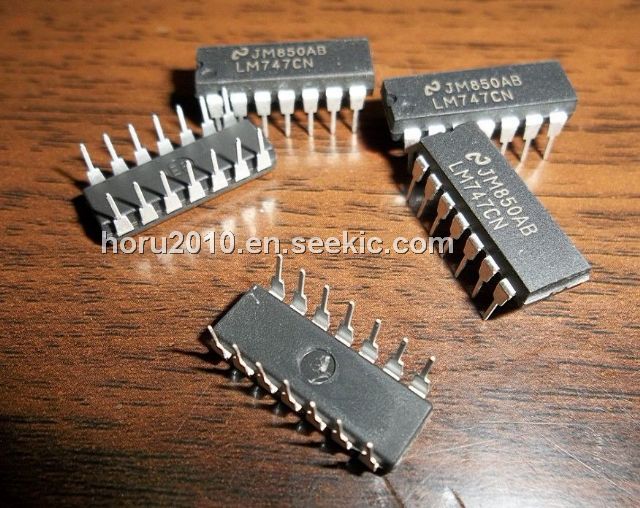

The LM747 is a general purpose dual operational amplifier. The dual operational amplifier shares a common bias network and power supply leads. Otherwise, their operation is completely independent. Additional features of the LM747 are: no latch-up when input common mode range is exceeded, freedom from oscillations, and package flexibility. The LM747 has its specifications guaranteed over the temperature range from 0℃ to a70℃ instead of b55℃ to a125℃.
Parametrics
LM747 absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Power Dissipation: 800 mW; (3)Differential Input Voltage: ±30V; (4)Input Voltage: ±15V; (5)Output Short-Circuit Duration: Indefinite; (6)Operating Temperature Range: 0℃ to a70℃; (7)Storage Temperature Range: -65℃ to a150℃; (8)Lead Temperature (Soldering, 10 sec.): 300℃.
Features
LM747 features: (1)No frequency compensation required; (2)Short-circuit protection; (3)Wide common-mode and differential voltage ranges; (4)Low power consumption; (5)No latch-up; (6)Balanced offset null.

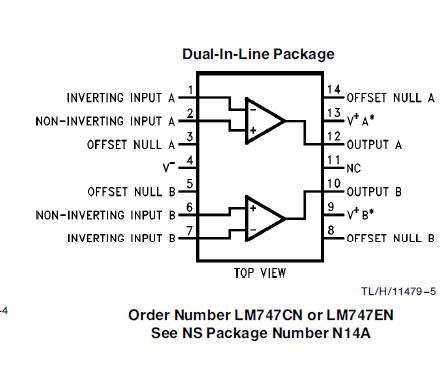

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM747 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
LM747H |
|

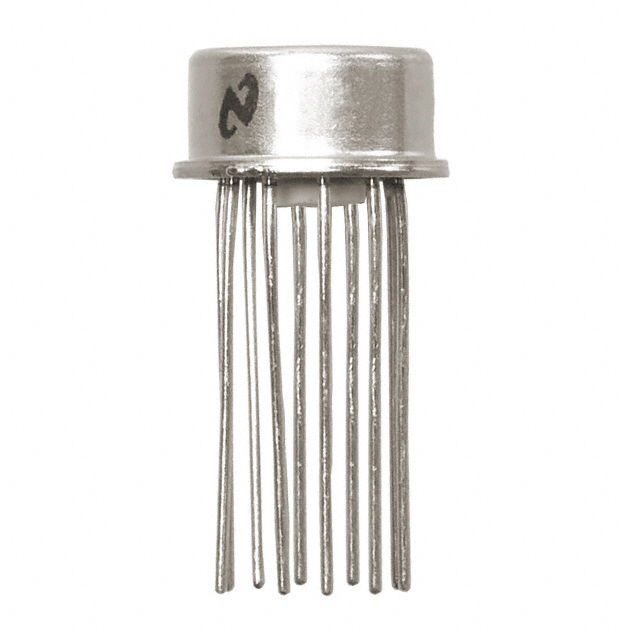

IC OP AMP DUAL COMPARE TO-100-10 |
Data Sheet |
Negotiable |
|
||||
