Product Summary

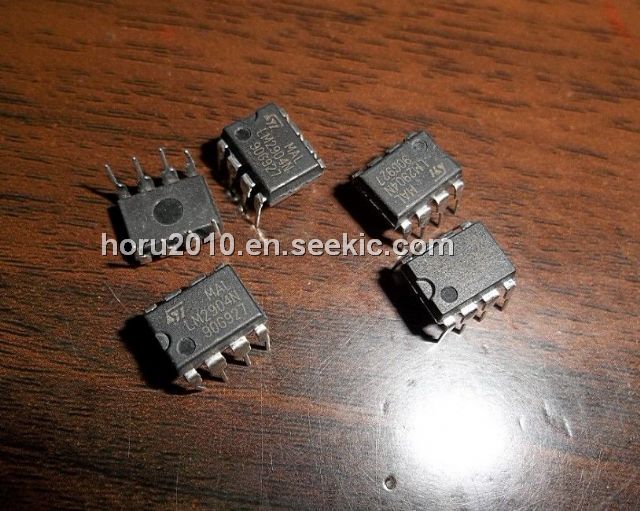

The LM2904 is a dual differential input operational amplifier. Utilizing the circuit designs perfected for the LM2904, the dual operational amplifier features low power drain, a common mode input voltage range extending to ground/VEE, and single supply or split supply operation. The LM2904 has several distinct advantages over standard operational amplifier types in single supply applications. The device can operate at supply voltages as low as 3.0 V or as high as 32 V, with quiescent currents about one–fifth of those associated with the MC1741 (on a per amplifier basis). The common mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. The output voltage range also includes the negative power supply voltage.
Parametrics
LM2904 absolute maximum ratings: (1)Power Supply Voltages, Single Supply, VCC: 32 to 26Vdc; Split Supplies, VCC, VEE: ±16 to ±13Vdc; (2)Input Differential Voltage Range, VIDR: ±32 to ±26Vdc; (3)Input Common Mode Voltage Range, VICR: -0.3 to 32 to -0.3 to 26 Vdc; (4)Output Short Circuit Duration, tSC: Continuous; (5)Junction Temperature, TJ: 150℃; (6)Thermal Resistance, Junction-to-Air, RθJA: 238℃/W; (7)Storage Temperature Range, Tstg: -55 to +125℃; (8)ESD Tolerance - Human Body Model: 2000 V; (9)Operating Ambient Temperature Range, TA: -40 to +105℃.
Features
LM2904 features: (1)Short Circuit Protected Outputs; (2)True Differential Input Stage; (3)Single Supply Operation: 3.0 V to 26 V (LM2904, A, V); (4)Low Input Bias Currents; (5)Internally Compensated; (6)Common Mode Range Extends to Negative Supply; (7)Single and Split Supply Operation; (8)ESD Clamps on the Inputs Increase Ruggedness of the Device without Affecting Operation.

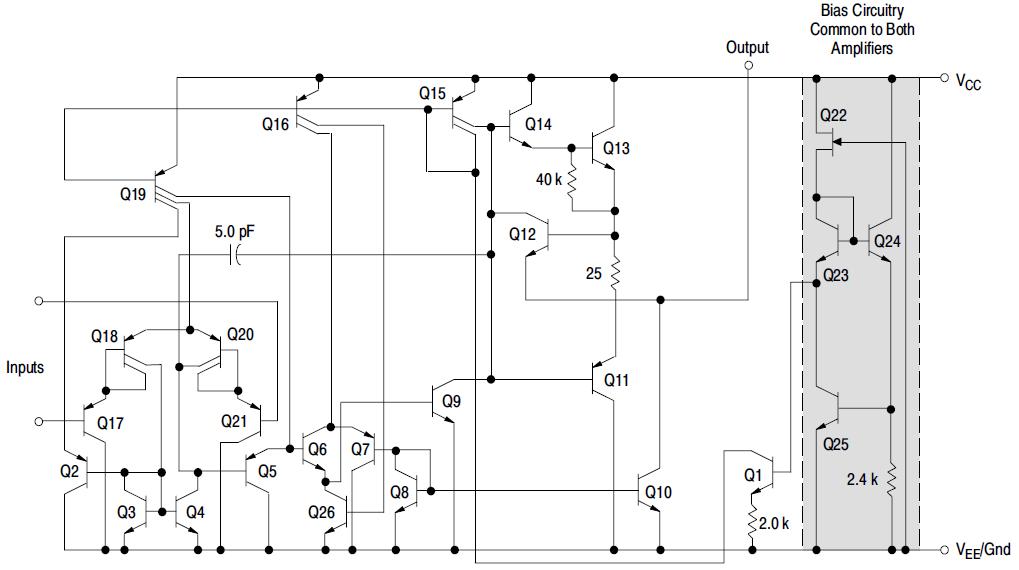

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM2904A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
LM2904ADMG |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-26V Dual Lo PWR -40 to 105deg C |
Data Sheet |
Negotiable |
|
||||||||||||
|
LM2904ADMR2 |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-26V Dual Lo PWR |
Data Sheet |
Negotiable |
|
||||||||||||
|
LM2904ADMR2G |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-26V Dual Lo PWR -40 to 105deg C |
Data Sheet |
|
|
||||||||||||
|
LM2904AN |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-26V Dual Lo PWR |
Data Sheet |
Negotiable |
|
||||||||||||
|
LM2904ANG |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-26V Dual Lo PWR -40 to 105deg C |
Data Sheet |
|
|
||||||||||||
|
LM2904AVQDR |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Enhanced Voltage |
Data Sheet |
|
|
||||||||||||
|
LM2904AVQDRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Operational Amp |
Data Sheet |
|
|
||||||||||||
