KSZ8001

KSZ8001, 10/100BASETX/FX Physical Layer Transceiver, QFP, 2V, 50MHz, 10mA, Micrel Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.46~2.35 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	2.35 / Piece
10 ~ 100 :	1.58 / Piece
100 ~ 1000 :	1.46 / Piece

PartNumber:: KSZ8001

Brand:: Micrel Semiconductor - Micrel | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Datasheet:: KSZ8001 Datasheet download

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-22

From Other Seller

Part Number:KSZ8001
US $1.46 - 2.35
MICREL ksz8001l LQFP48

US $1.00 - 3.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

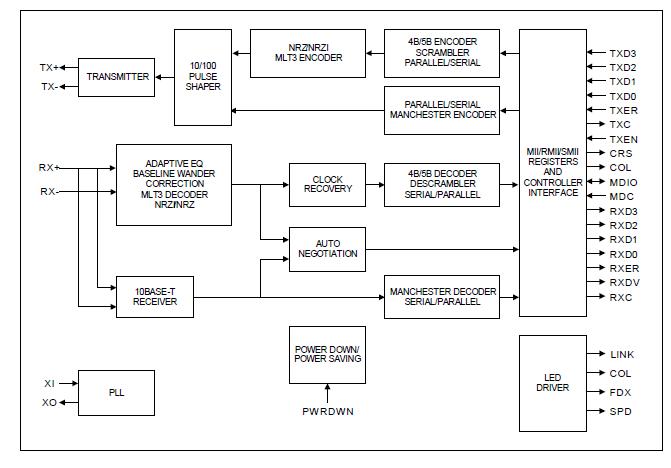

The KSZ8001 is a 10BASE-T/100BASE-TX/FX Physical Layer Transceiver, operating the core at 1.8 volts to meet low voltage and low power requirements. The solution provides MII/RMII/SMII interfaces to transmit and receive data. A unique mixed-signal design extends signaling distance while reducing power consumption. The KSZ8001 provides the most robust solution for eliminating the need to differentiate between crossover and straight-through cables.

Parametrics

KSZ8001 absolute maximum ratings: (1)Storage Temperature (TS): -55℃ to +150℃; (2)Supply Referenced to GND: -0.5V to +4.0V; (3)All pins: -0.5V to +4.0V.

Features

KSZ8001 features: (1)Single chip 100BASE-TX/100BASE-FX/10BASE-T physical layer solution; (2)1.8V CMOS design, power consumption 250 mW; (3)Robust (130m+) operation over standard cables; (4)Supports Media Independent Interface (MII), Reduced MII (RMII), and Serial MII (SMII); (5)LinkMD feature to determine cable length and diagnose faulty cables up 200 m with +/- 2 m accuracy; (6)Supports HP MDI/MDI-X auto crossover; (7)Supports power down mode and power saving mode; (8)MDC/MDIO to 12.5 MHz for rapid configuration; (9)Fully compliant to IEEE 802.3u standard; (10)Supports auto-negotiation and manual selection for 10/100Mbps speed and full / half-duplex mode.
