ISP1301BS

Product Summary

The ISP1301BS is a Universal Serial Bus (USB) On-The-Go (OTG) transceiver device that is fully compliant with Universal Serial Bus Specification Rev. 2.0 and On-The-Go Supplement to the USB Specification Rev. 1.0a. The ISP1301BS can transmit and receive serial data at both full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) data rates. It is ideal for use in portable electronics devices, such as mobile phones, digital still cameras, digital video cameras, Personal Digital Assistants (PDAs) and digital audio players. The applications of the ISP1301BS include Mobile phone, Digital camera, Personal digital assistant, Digital video recorder.

Parametrics

ISP1301BS absolute maximum ratings: (1)VDD, DC Supply Voltage: 25V; Zener Clamp: 26V; Zener Current: 10mA; (2)VFB, Input Voltage to FB Pin: -0.3 to 6 V; (3)VSense, Input Voltage to Sense Pin: -0.3 to 6V; (4)Pd, Power Dissipation: 300 mW; (5)TJ, Operating Junction Temperature: 150℃; (6)RθJA, Thermal Resistance (Junction to Air), SOT-26: 208.4℃/W; DIP-8 82.5℃/W; (7)Tstg, Storage Temperature Range: -55 to +150℃; (8)TL, Lead Temperature (Soldering), 20 sec, SOT-26: 220℃; 10 sec, DIP-8: 260℃; (9)ESD Capability, HBM Model: 3.0 kV; (10)ESD Capability, Model: 300 V.

Features

ISP1301BS features: (1)Fully complies with: Universal Serial Bus Specification Rev. 2.0; On-The-Go Supplement to the USB 2.0 Speci?cation Rev. 1.0a; On-The-Go Transceiver Specification (CEA–2011) Rev. 1.0; (2)Can transmit and receive serial data at both full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) data rates; (3)Ideal for system ASICs or chip sets with built-in USB OTG dual-role core; (4)Supports mini USB analog car kit interface; (5)Supports various serial data interface protocols; transparent general-purpose buffer mode allows you to control the direction of data transfer; (6)Supports data line and VBUS pulsing session request; (7)Contains Host Negotiation Protocol (HNP) command and status registers; (8)Supports serial I2C-bus interface for OTG status and command controls; (9)2.7 V to 4.5 V power supply input range for the ISP1301; (10)Built-in charge pump regulator outputs 5 V at current greater than 8 mA; (11)Supports external charge pump; (12)Supports wide range interfacing I/O voltage (VDD_LGC = 1.65 V to 3.6 V) for digital control logics.

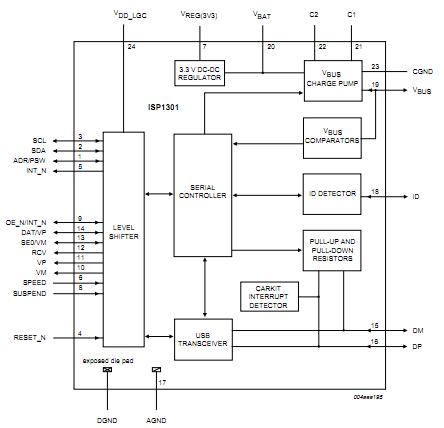

Diagrams
