Product Summary
The ICE2QS03G is a Quasi-Resonant PWM Controller. ICE2QS03G is a quasi-resonant PWM controller optimized for off-line switch power supply applications such as LCD TV, CRT TV and notebook adapter. The digital frequency reduction with decreasing load enables a quasi-resonant operation till very low load. As a result, the overall system efficiency is significantly improved compared to other conventional solutions. The active burst mode operation enables an ultra-low power consumption at standby mode with small and controllable output voltage ripple. Based on the BiCMOS technology, the product has a wide operation range (up to 26V) of IC power supply and lower power consumption. The numerous protection functions give a full protection of the power supply system in failure situations. All of these make the ICE2QS03G an outstanding controller for quasi-resonant flyback converter in the market.
Parametrics
ICE2QS03G absolute maximum ratings: (1)HV Voltage: 500V; (2)VCC Supply Voltage: -0.3 to 27V; (3)FB Voltage: -0.3 to 5.0V; (4)ZC Voltage: -0.3 to 5.0V; (5)CS Voltage: -0.3 to 5.0V; (6)GATE Voltage: -0.3 to 27V; (7)Maximum current out from ZC pin: 3mA; (8)Junction Temperature: -40 to 150℃; (9)Storage Temperature: -55 to 150℃.
Features
ICE2QS03G features: (1)Active burst mode operation at light/no load for low standby input power (< 100mW); (2)Digital frequency reduction with decreasing load; (3)Power cell for VCC pre-charging with constant current; (4)Built-in digital soft-start; (5)Foldback correction and cycle-by-cycle peak current limitation; (6)Auto restart mode for VCC Overvoltage protection; (7)Auto restart mode for VCC Undervoltage protection; (8)Auto restart mode for openloop/overload protection; (9)Latch-off mode for adjustable output overvoltage protection; (10)Latch-off mode for Short-winding protection.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

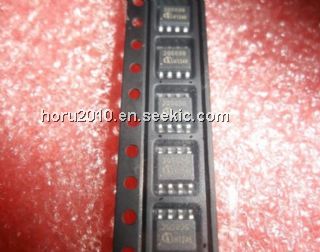

ICE2QS03G |
Infineon Technologies |
Primary & Secondary Side PWM Controllers Quasi-Resonant PWM Controller |
Data Sheet |
|
|
|||||||||||||
