Product Summary
The HD74LS373P is an 8-bit register features totem-pole three-state outputs designed specifically for driving highlycapacitive
or relatively low-impedance loads. The high-impedance third state and increased high-logic-level drive provide this register with the capacity of being connected directly to and driving the bus lines in a bus-organized system without need for interface or pull-up components. The HD74LS373P is particularly attractive for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
Parametrics
HD74LS373P absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VIN: 7 V; (3)Power dissipation, PT: 400 mW; (4)Storage temperature, Tstg: -65 to +150℃.
Features
HD74LS373P features: (1)Input voltage, VIH: 2.0V; VIL: 0.7V, Data inputs; (2)VIL: 0.8V, G, Output control inputs; (3)Output voltage, VOH: 2.4V, VCC = 4.75 V, VIH = 2 V, VIL = VIL max, IOH = -2.6 mA; VOL: 0.4V, IOL = 12 mA; VOL: 0.5; (4)V, IOL = 24 mA, VCC = 4.75 V, VIH = 2 V, VIL = VIL max; (5)Output current, IOZH: 20μA, VO = 2.7 V; IOZL: -20μA, VO = 0.4 V, VCC = 5.25 V, VIH = 2 V; (6)Input current, IIH: 20 μA, VCC = 5.25 V, VI = 2.7 V; IIL: -0.4 mA VCC = 5.25 V, VI = 0.4 V; II: 0.1 mA, VCC = 5.25 V, VI = 7 V; (7)Short-circuit output current, IOS: -30 to -130 mA.

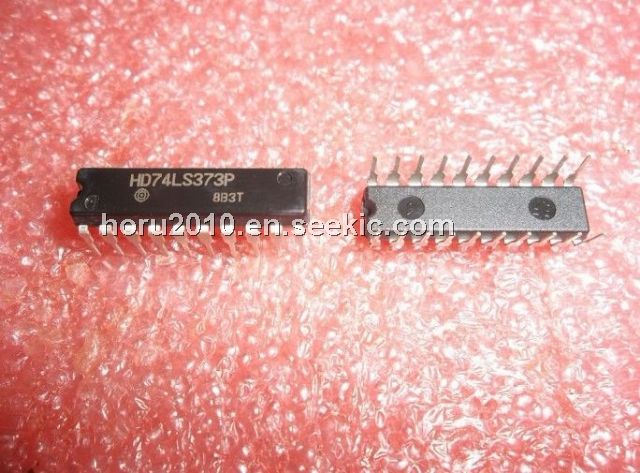

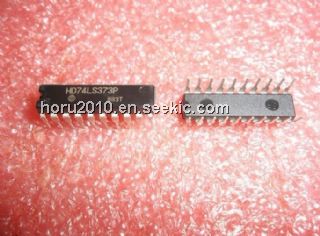

Diagrams
