Product Summary

The GBL10 ia a glass Passivated Single-Phase Bridge Rectifier.

Parametrics

GBL10 maximum ratings:(1)Maximum repetitive peak reverse voltage:1000V; (2)Maximum RMS voltage:700 V; (3)Maximum DC blocking voltage:1000 V; (4)Maximum average forward rectified output current at TC=50°C:4.0A; (5)Peak forward surge current, single half sine-wave superimposed on rated load (JEDEC Method) TJ=150°C:150.0 Amps; (6)Rating for fusing (t<8.3ms):93.0 A2sec; (7)Maximum instantaneous forward drop per leg at 4.0 Amperes:1.1V; (8)Maximum DC reverse current at rated DC blocking voltage per leg (TA=125°C):500.0μA; (9)Typical junction capacitance per leg : 40.0 pF; (10)Typical thermal resistance per leg :22.0°C/W; (11)Operating junction storage and temperature range :-55 to +150 °C.

Features

GBL10 features:(1)Plastic package has Underwriters Laboratory Flammability Classification 94V-0; (2)This series is UL listed under the Recognized Component Index, file number E54214; (3) Glass passivated chip junctions; (4) High case dielectric strength; (5)Typical IR less than 0.1μA; (6)High surge current capability; (7)Ideal for printed circuit boards; (8)High temperature soldering guaranteed:260°C/10 seconds, 0.375" (9.5mm) lead length,5 lbs. (2.3kg) tension.

Diagrams

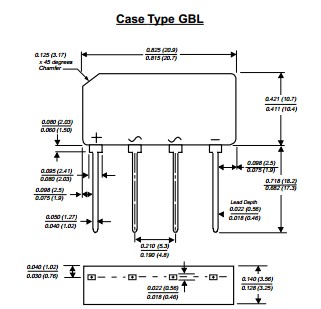

GBL10 Dimension Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
GBL10
GBL10
GeneSiC Semiconductor
Bridge Rectifiers 1000V 4A Bridge Rectifier
Data Sheet
0-600: $0.28
600-1000: $0.27
1000-2000: $0.27
GBL10-E3/45
GBL10-E3/45
Vishay Semiconductors
Bridge Rectifiers 1000 Volt 4.0 Amp Glass Passivated
Data Sheet
0-1: $0.76
1-10: $0.67
10-100: $0.58
100-250: $0.51
GBL10-E3/51
GBL10-E3/51
Vishay Semiconductors
Bridge Rectifiers 1000 Volt 4.0 Amp Glass Passivated
Data Sheet
0-1: $0.68
1-10: $0.62
10-25: $0.57
25-100: $0.51
