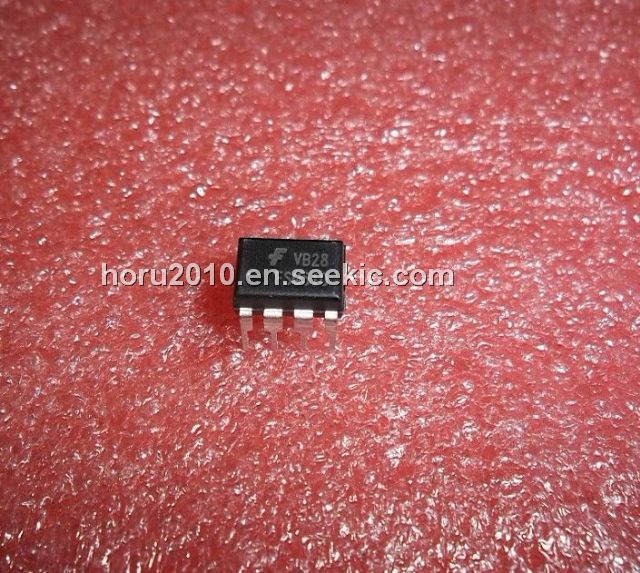

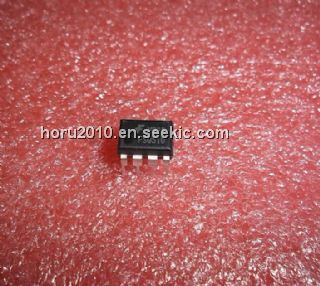

FSQ510

power switch, 700V, 10mA, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.39~0.64 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 9 :	0.64 / Piece
10 ~ 99 :	0.48 / Piece
100 ~ 1000 :	0.39 / Piece

PartNumber:: FSQ510

Brand:: Fairchild Semiconductor - Fairchild | Pack: DIP | D/C: 13+

Availability:: Supply Ability: 0/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-12

From Other Seller

Part Number:FSQ510
US $0.39 - 0.64
FSQ510 FAI DIP-8

US $0.10 - 0.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The FSQ510 is a green mode fairchild power switch for quasi-resonant converter. A Quasi-Resonant Converter (QRC) generally shows lower EMI and higher power conversion efficiency than a conventional hard-switched converter with a fixed switching frequency. The FSQ510(H) is an integrated Pulse-Width Modulation (PWM) controller and SenseFET specifically designed for quasi-resonant offline Switch Mode Power Supplies (SMPS) with minimal external components. Its applications include Cell Phone Chargers, Auxiliary Power Supplies for PC and White Goods.

Parametrics

FSQ510 absolute maximum ratings: (1)VSTR pin voltage: 700V; (2)drain pin voltage: 700V; (3)supply voltage: 20V; (4)feedback voltage range: -0.3 to 6.5V; (5)sync pin voltage: -0.3 to 6.5V; (6)operating junction temperature: 150℃; (7)operating ambient temperature: -25 to 85℃; (8)storage temperature: -55 to 150℃.

Features

FSQ510 features: (1)Uses a DMOS Integrated Power Switch; (2)Optimized for Quasi-Resonant Converter (QRC); (3)Low EMI through Variable Frequency Control and Inherent Frequency Modulation; (4)High Efficiency through Minimum Voltage Switching  Extended Quasi-Resonant Switching for Wide Load Ranges; (5)Small Frequency Variation for Wide Load Ranges; (6)Advanced Burst-Mode Operation for Low Standby; (7)Power Consumption.
