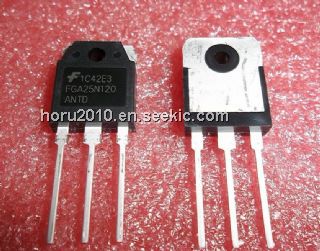

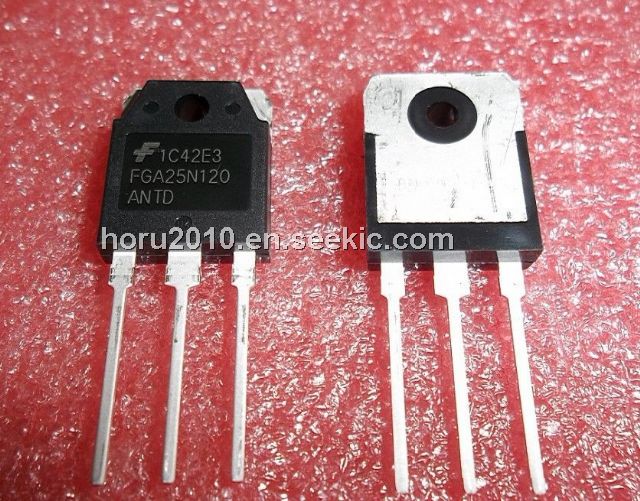

FGA25N120ANTD

FGA25N120ANTD, NPT Trench IGBT, TO, 1200V, 50A, Fairchild Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.98~0.98 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 100 :	0.98 / Piece

PartNumber:: FGA25N120ANTD

Brand:: Fairchild Semiconductor - Fairchild | Pack: TO | D/C: 11+

Availability:: Supply Ability: 0/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-02-18

From Other Seller

Part Number:FGA25N120ANTD
US $0.98 - 0.98
Quantity:

piece

Product Summary

The FGA25N120ANTD is a 1200V NPT Trench IGBT. It offers superior conduction and switching performances, high avalanche ruggedness and easy parallel operation.

Parametrics

FGA25N120ANTD absolute maximum ratings: (1)Collector-Emitter Voltage: 1200V; (2)Gate-Emitter Voltage: ± 20V; (3)Collector Current: @ TC = 25℃: 50A; (4)Collector Current: @ TC = 100℃: 25A; (5)Pulsed Collector Current: 90A; (6)Diode Continuous Forward Current: @ TC = 100℃: 25A; (7)Diode Maximum Forward Current: 150A; (8)Maximum Power Dissipation: @ TC = 25℃: 312W; (9)Maximum Power Dissipation: @ TC = 100℃: 125W; (10)Operating Junction Temperature: -55℃ to +150℃; (11)Storage Temperature Range: -55℃ to +150℃.

Features

FGA25N120ANTD features: (1)NPT Trench Technology, Positive temperature coefficient; (2)Low saturation voltage: VCE(sat), typ = 2.0V @ IC = 25A and TC = 25℃; (3)Low switching loss: Eoff, typ = 0.96mJ @ IC = 25A and TC = 25℃; (4)Extremely enhanced avalanche capability.
