Product Summary

The FDS8958A is a Dual N & P-Channel PowerTrench MOSFET.

Parametrics

FDS8958A absolute maximum ratings: (1)Drain-Source Voltage: 30 V; (2)Gate-Source Voltage: ±20 V; (3)Drain Current - Continuous: 7 A; (4)Power Dissipation for Dual Operation: 2 W; (5)Power Dissipation for Single Operation (Note 1a): 1.6W; (6)Operating and Storage Junction Temperature Range: -55 to +150 ℃.

Features

FDS8958A features: (1)Fast switching speed; (2)High power and handling capability in a widely used surface mount package.

Diagrams

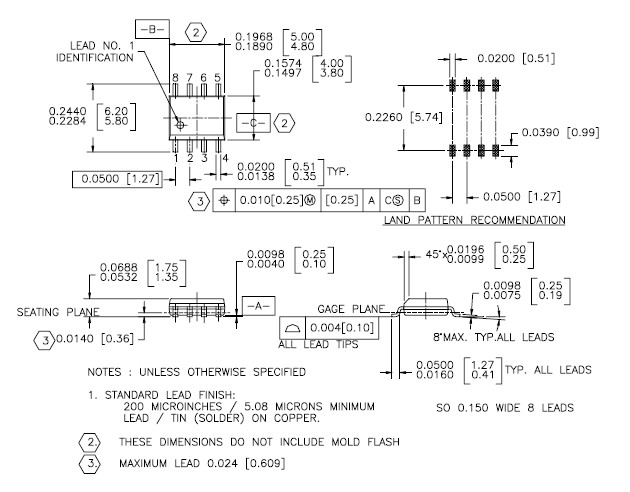

FDS8958A dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

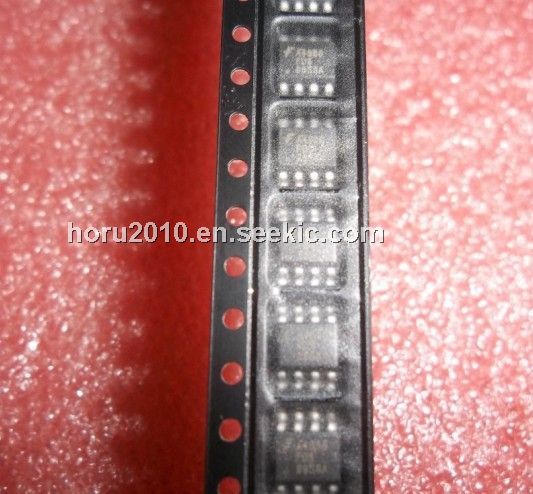

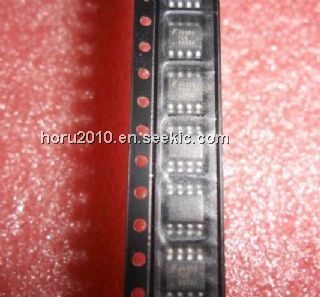

FDS8958A
FDS8958A

Fairchild Semiconductor

MOSFET SO8 COMP N-P-CH T/R

Data Sheet

0-1: $0.48
1-25: $0.42
25-100: $0.32
100-250: $0.28
FDS8958A_F085
FDS8958A_F085

Fairchild Semiconductor

MOSFET SO8DUAL NCH & PCH POWER TRENCH MOSFET

Data Sheet

0-1: $0.77
1-25: $0.67
25-100: $0.62
100-250: $0.54
FDS8958A_NF073
FDS8958A_NF073

Fairchild Semiconductor

MOSFET DUAL NCH AND PCH POWER TRENCH MOSFET

Data Sheet

Negotiable
FDS8958A_Q
FDS8958A_Q

Fairchild Semiconductor

MOSFET SO8 COMP N-P-CH T/R

Data Sheet

Negotiable
