FAN7930B

FAN7930B, Critical Conduction Mode PFC Controller, SOP, -800 to +500 mA, -0.3 to 8.0V, Fairchild Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.28~0.48 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	0.48 / Piece
10 ~ 100 :	0.32 / Piece
100 ~ 1000 :	0.28 / Piece

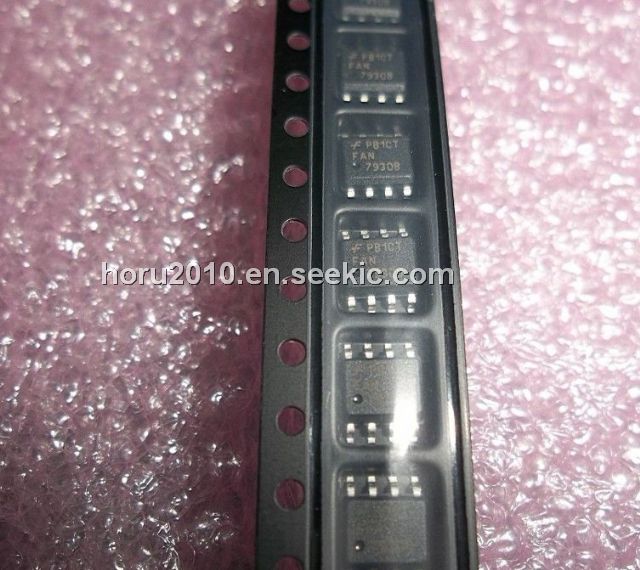

PartNumber:: FAN7930B

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-28

From Other Seller

Part Number:FAN7930B
US $0.28 - 0.48
Quantity:

piece

Product Summary

The FAN7930B is an active power factor correction (PFC) controller for boost PFC applications that operate in critical conduction mode (CRM). It uses a voltage-mode PWM that compares an internal ramp signal with the error amplifier output to generate a MOSFET turn-off signal. Because the voltage-mode CRM PFC controller does not need rectified AC line voltage information, it saves the power loss of an input voltage sensing network necessary for a current-mode CRM PFC controller. The applications of the FAN7930B include Adapter, Ballast, LCD TV, CRT TV, SMPS.

Parametrics

FAN7930B absolute maximum ratings: (1)VCC, Supply Voltage: VZ V; (2)IOH, IOL, Peak Drive Output Current: -800 to +500 mA; (3)ICLAMP, Driver Output Clamping Diodes VO>VCC or VO< -0.3V: -10 to +10 mA; (4)IDET, Detector Clamping Diodes: -10 to +10 mA; (5)VIN, Error Amplifier Input, Output, OVP Input, ZCD and OVP Pin: -0.3 to 8.0V; (6)CS, Input Voltage: -10 to 6V; (7)TJ, Operating Junction Temperature: +150℃; (8)TA, Operating Temperature Range -40 to +125℃; (9)TSTG, Storage Temperature Range -65 to +150℃; (10)ESD, Electrostatic Discharge Capability, Human Body Model, JESD22-A114: 2.5kV; Charged Device Model, JESD22-C101: 2.0kV.

Features

FAN7930B features: (1)Additional OVP Detection Pin; (2)Input Voltage Absent Detection Circuit; (3)Maximum Switching Frequency Limitation; (4)Internal Soft-Start and Overshoot-less Control; (5)Internal Total Harmonic Distortion (THD) Optimizer; (6)Precise Adjustable Output Over-Voltage Protection; (7)Open-Feedback Protection and Disable Function; (8)Zero Current Detector; (9)150μs Internal Startup Timer; (10)MOSFET Over-Current Protection; (11)Under-Voltage Lockout with 3.5V Hysteresis; (12)Low Startup and Operating Current; (13)Totem-Pole Output with High State Clamp; (14)+500/-800mA Peak Gate Drive Current; (15)8-Pin Small Outline Package (SOP).
