Product Summary

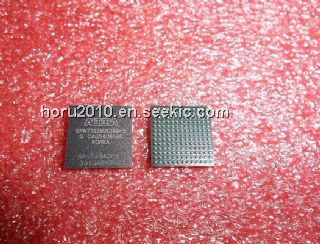

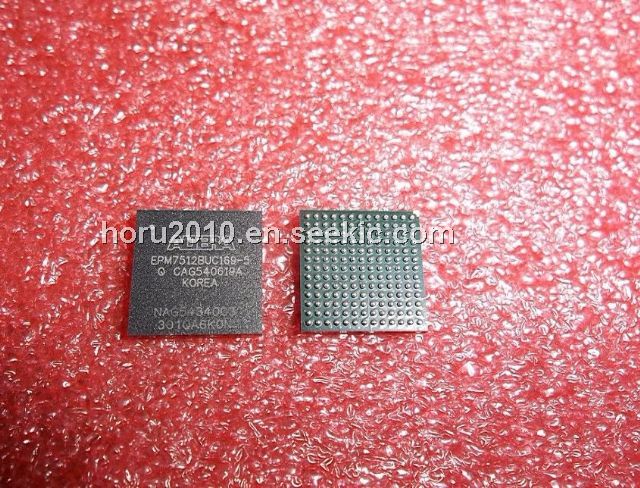

The EPM7512BUC169-5 is a Programmable Logic Device. The EPM7512BUC169-5 includes four dedicated inputs that can be used as general-purpose inputs or as high-speed, global control signals (clock, clear, and two output enable signals) for each macrocell and I/O pin. The EPM7512BUC169-5 includes the following elements: LABs, Macrocells, Expander product terms (shareable and parallel), PIA, I/O control blocks.
Parametrics
EPM7512BUC169-5 absolute maximum ratings: (1)VCCINT Supply voltage: –0.5 to 3.6 V; (2)VCCIO Supply voltage: –0.5 to 3.6 V; (3)VI DC input voltage (2): –2.0 to 4.6 V; (4)IOUT DC output current, per pin: –33 to 50 mA; (5)TSTG Storage temperature No bias: –65 to 150℃; (6)TA Ambient temperature Under bias: –65 to 135℃; (7)TJ Junction temperature Under bias: –65 to 135℃.
Features
EPM7512BUC169-5 features: (1)High-performance 2.5-V CMOS EEPROM-based programmable logic devices (PLDs) built on second-generation Multiple Array MatriX (MAX) architecture; (2)Advanced 2.5-V in-system programmability (ISP); (3)Programmable interconnect array (PIA) continuous routing; (4)structure for fast, predictable performance; (5)Configurable expander product-term distribution, allowing up to 32 product terms per macrocell; (6)Programmable macrocell registers with individual clear, preset, clock, and clock enable controls; (7)Two global clock signals with optional inversion; (8)Programmable power-up states for macrocell registers; (9)6 to 10 pin- or logic-driven output enable signal.
Diagrams
