Product Summary
The CR1220 is a kind of battery charger or holder.
Parametrics
CR1220 absolute maximum ratings: (1)Typical Drains at 2.85V (mA): 0.064; (2)Load (ohms): 45,000; (3)Cutoff 2.0V(hours): 628.
Features
CR1220 specifications: (1)Classification: Lithium Coin; (2)Chemical System: Lithium / Manganese Dioxide (Li/MnO2); (3)Designation: ANSI-5012LC, IEC-CR1220; (4)Nominal Voltage: 3.0 Volts; (5)Typical Capacity: 40 mAh (to 2.0 volts)(Rated at 45K ohms at 21℃); (6)Typical Weight: 0.78 grams (0.03 oz.); (7)Typical Volume: 0.25 cubic centimeters (0.02 cubic inch); (8)Max Rev Charge: 1 microampere; (9)Energy Density: 153 milliwatt hr/g, 464 milliwatt hr/cc; (10)Typical Li Content: 0.006 grams (0.0002 oz.); (11)UL Listed: MH12454.

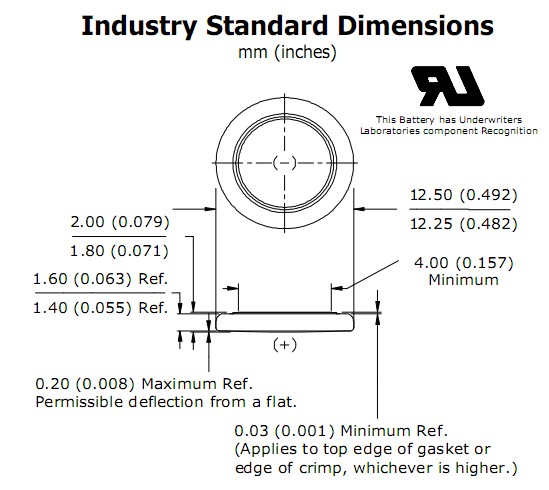

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CR1220 |
Panasonic Battery |
Coin Cell Battery 3V 12 X 2.0 MM 35mA |
Data Sheet |
Negotiable |
|
||||
 |
CR1220 500/CASE |
Renata |
Coin Cell Battery 3V LITH 12.5X2.0 |
Data Sheet |
Negotiable |
|
||||
|
CR1220.CU |
Renata |
Coin Cell Battery 3V 12.5 x 2.0mm 38mAh |
Data Sheet |
Negotiable |
|
||||
|
CR1220.IB |
Renata |
Coin Cell Battery 3V 12.5 x 2.0mm 38mAh |
Data Sheet |
Negotiable |
|
||||
|
CR1220.IB 1000/CASE |
Renata |
Coin Cell Battery 3V 12.5 x 2.0mm 38mAh |
Data Sheet |
Negotiable |
|
||||
|
CR1220.TS |
Renata |
Coin Cell Battery 3V 12.5 x 2.0mm 38mAh |
Data Sheet |
Negotiable |
|
||||
|
CR1220FH |
Renata |
Coin Cell Battery 3V 38mAh 2 PIN 12.7X2.4 Horiz |
Data Sheet |
Negotiable |
|
||||
|
CR1220FH-LF |
Renata |
Coin Cell Battery 3V 2-PIN HORZ 38mAh 12.7 x 2.8mm |
Data Sheet |
Negotiable |
|
||||
