Product Summary

The CD74HC4053E is a high-speed CMOS logic analog multiplexers/demultiplexer. The CD74HC4053E is digitally controlled analog switch which utilizes silicon gate CMOS technology to achieve operating speeds similar to LSTTL with the low power consumption of standard CMOS intergrated circuits. The CD74HC4053E controls analog voltages that may vary across the voltage supply range (i.e. Vcc to VEE) .

Parametrics

CD74HC4053E absolute maximum ratings: (1) DC Supply Voltage, VCC- VEE: -0.5 to 10.5V; (2) VCC DC Supply Voltage, VCC: -0.5 to +7V; (3) DC Supply Voltage, VEE: +0.5 to -7V; (4) DC Input Diode Current, IIK: ±20mA (For VI< -0.5V or VI> Vcc + 0.5V) ; (5) DC Switch Diode Current, IOK: ±20mA (For VI< VEE -0.5V or VI> Vcc + 0.5V) ; (6) DC Switch Current, For VI> VEE -0.5V or VI< VCC+ 0.5V: ±25mA; (7) DC V or Ground Current, Icc: ±50mA; (8) DC VEE Current, IEE: -20mA.

Features

CD74HC4053E features: (1) Wide Analog Input Voltage Range: ±5V Max; (2) Low On Resistance; (3) Low Crosstalk between Switches; (4) Fast Switching and Propagation Speeds; (5) Wide Operating Temperature Range: -55 to 125°C; (6) Operation Control Voltage: 2 to 6V; (7) Switch Voltage: 0 to 10V; (8) High Noise Immunity.

Diagrams

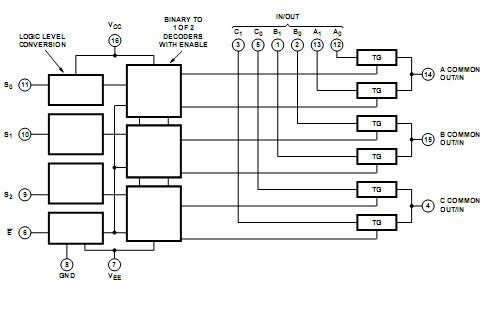

CD74HC4053E Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

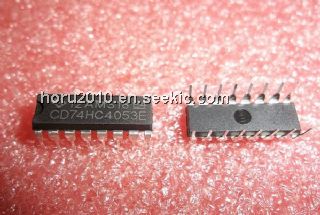

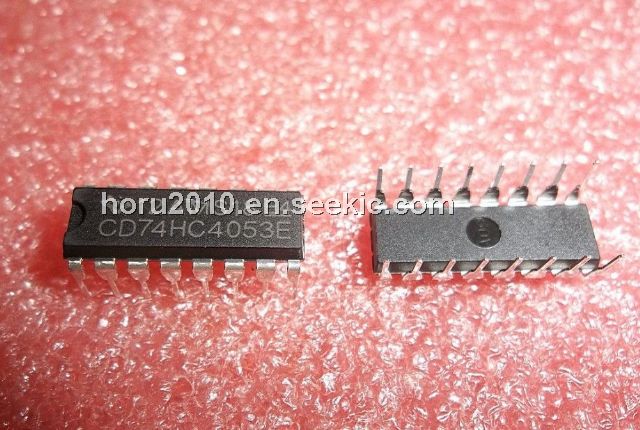

CD74HC4053E
CD74HC4053E
Texas Instruments
Multiplexer Switch ICs Triple 2-Ch Analog
Data Sheet
0-1: $0.32
1-25: $0.27
25-100: $0.21
100-250: $0.20
CD74HC4053EE4
CD74HC4053EE4
Texas Instruments
Multiplexer Switch ICs High Speed CMOS 3 2-Channel Analog
Data Sheet
0-1: $0.37
1-25: $0.27
25-100: $0.23
100-250: $0.20
