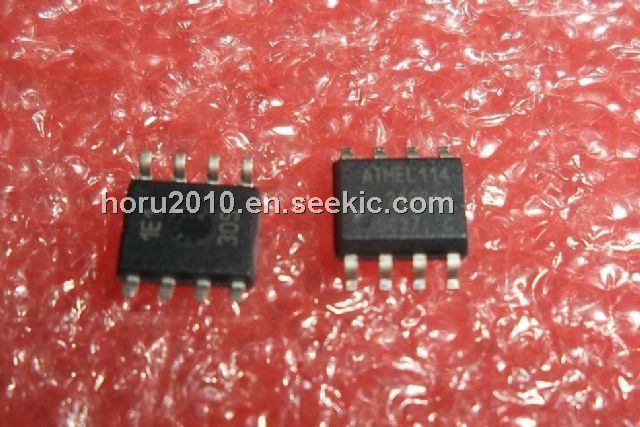

AT24C64N-10SC

AT24C64N-10SC, 2-Wire Serial EEPROM, SOP, -1.0V to +7.0V, 5mA, ATMEL Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.39~0.39 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 100 :	0.39 / Piece

PartNumber:: AT24C64N-10SC

Brand:: ATMEL Corporation - ATMEL | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 0/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-03

From Other Seller

Part Number:AT24C64N-10SC
US $0.39 - 0.39
Quantity:

piece

Product Summary

The AT24C64N-10SC is a 2-Wire Serial EEPROM provides 32,768/65,536 bits of EEPROM organized as 4096/8192 words of 8 bits each. The device’s cascadable feature allows up to 8 devices to share a common 2-wire bus. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT24C64N-10SC is available in space saving 8-pin JEDEC PDIP, 8-pin and 14-pin JEDEC SOIC, 8-pin EIAJ SOIC, and 8-pin TSSOP packages and is accessed via a 2-wire serial interface.

Parametrics

AT24C64N-10SC absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V; (4)Maximum Operating Voltage: 6.25V; (5)DC Output Current: 5.0 mA.

Features

AT24C64N-10SC features: (1)Low-Voltage and Standard-Voltage Operation, 5.0 (VCC = 4.5V to 5.5V); 2.7 (VCC = 2.7V to 5.5V); 2.5 (VCC = 2.5V to 5.5V); 1.8 (VCC = 1.8V to 5.5V); (2)Low-Power Devices (ISB = 2μA @ 5.5V) Available; (3)Internally Organized 4096 x 8, 8192 x 8; (4)2-Wire Serial Interface; (5)Schmitt Trigger, Filtered Inputs for Noise Suppression; (6)Bidirectional Data Transfer Protocol; (7)100 kHz (1.8V, 2.5V, 2.7V) and 400 kHz (5V) Compatibility; (8)Write Protect Pin for Hardware Data Protection; (9)32-Byte Page Write Mode (Partial Page Writes Allowed); (10)Self-Timed Write Cycle (10 ms max); (11)High Reliability, Endurance: 1 Million Write Cycles; Data Retention: 100 Years; ESD Protection: >3,000V; (12)Automotive Grade and Extended Temperature Devices Available; (13)8-Pin JEDEC PDIP, 8-Pin and 14-Pin JEDEC SOIC, 8-Pin EIAJ SOIC, and 8-pin TSSOP Packages.
