Product Summary

The AT24C11N-10SU-1.8 provides 1024 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 128 words of 8 bits each. The AT24C11N-10SU-1.8 is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT24C11N-10SU-1.8 is available in space saving 8-lead JEDEC SOIC and is accessed via a 2-wire serial interface. In addition, the entire family is available in 2.7V (2.7V to 5.5V) and 1.8V (1.8V to 5.5V) versions.

Parametrics

AT24C11N-10SU-1.8 absolute maximum ratings: (1)Operating Temperature: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V; (4)Maximum Operating Voltage: 6.25V; (5)DC Output Current: 5.0m.

Features

AT24C11N-10SU-1.8 features: (1)Low Voltage and Standard Voltage Operation; (2)Internally Organized 128 x 8; (3)2-Wire Serial Interface; (4)Bidirectional Data Transfer Protocol; (5)100 kHz (1.8V) and 400 kHz (2.5V, 2.7V, 5V) Compatibility; (6)4-Byte Page Write Mode; (7)Self-Timed Write Cycle (5 ms max); (8)High Reliability; (9)Automotive Grade, Extended Temperature and Lead-Free/Halogen-Free; (10)8-lead PDIP, 8-lead JEDEC SOIC, 5-lead SOT23 and 8-lead TSSOP Packages.

Diagrams

AT24C11N-10SU-1.8 Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

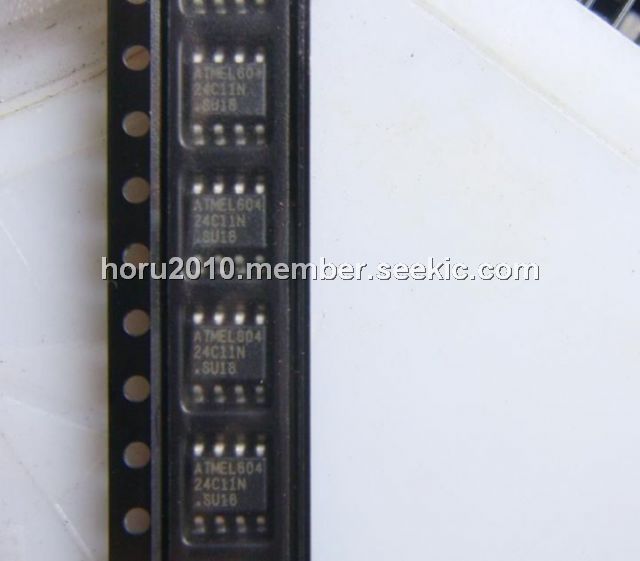

AT24C11N-10SU-1.8
AT24C11N-10SU-1.8

Atmel

EEPROM 1K 2-WIRE 1M CYCLES - 10MS 1.8V

Data Sheet

Negotiable
