Product Summary

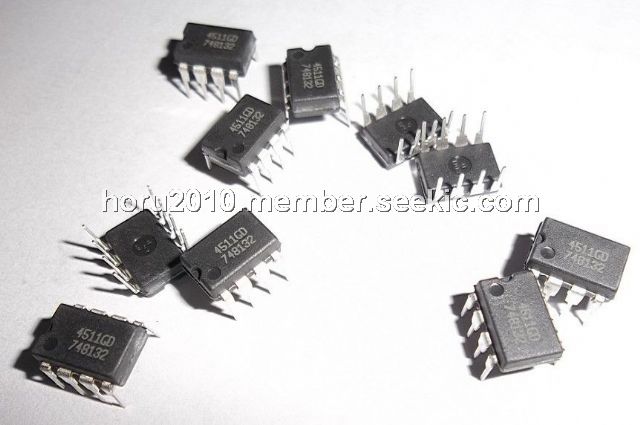

The AP4511GD is an advanced Power MOSFET from APEC provides the designer with the best combination of fast switching, ruggedized device design, ultra low on-resistance and cost-effectiveness.
Parametrics
AP4511GD absolute maximum ratings: (1)VDS Drain-Source Voltage: -35V; (2)VGS Gate-Source Voltage: ±20V; (3)ID@TA=25℃ Continuous Drain Current: -6.1A; (4)ID@TA=70℃ Continuous Drain Current: -5A; (5)IDM Pulsed Drain Current: -30A; (6)PD@TA=25℃ Total Power Dissipation: 2.0W; (7)Linear Derating Factor: 0.016W/℃; (8)TSTG Storage Temperature Range: -55 to 150℃; (9)TJ Operating Junction Temperature Range: -55 to 150℃.
Features
AP4511GD features: (1)Low Gate Charge; (2)Fast Switching Speed; (3)PDIP-8 Package.

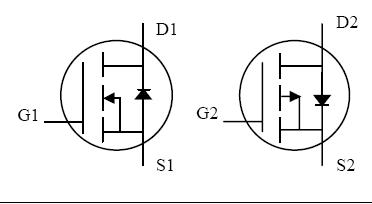

Diagrams
 |
